Technical guide:How dial gauge calibration evaluates indication error, repeatability, hysteresis, measurement uncertainty and traceability for dimensional inspection.
A dial gauge can show an inspector that two surfaces differ by a small amount. That reading may influence whether a machined component is accepted, whether a grinding process needs investigation, or whether a measurement should be repeated using another method.
Calibration provides evidence about how the instrument behaves when its indications are compared with suitable reference values under defined conditions.
Key point:A dial gauge returning to zero does not by itself demonstrate accurate performance throughout its measuring range.
Why Zero Checking Is Not Enough
A zero check is useful during routine inspection, but a dial gauge can return to zero and still show indication errors at other positions in its travel.
Mechanical dial gauges have several characteristics that may need to be evaluated, depending on the applicable specification and calibration method. These can include indication error, repeatability and hysteresis.
ISO 463:2006 specifies design and metrological characteristics for mechanical dial gauges. The applicable edition, manufacturer's specification and laboratory procedure should be confirmed before establishing acceptance requirements.
Routine check:A zero check can identify an obvious condition problem. Formal calibration provides measurement evidence across the defined calibration procedure.
What Dial Gauge Calibration Measures
Reference value | Gauge indication | Indication error | Repeatability | Hysteresis | Uncertainty

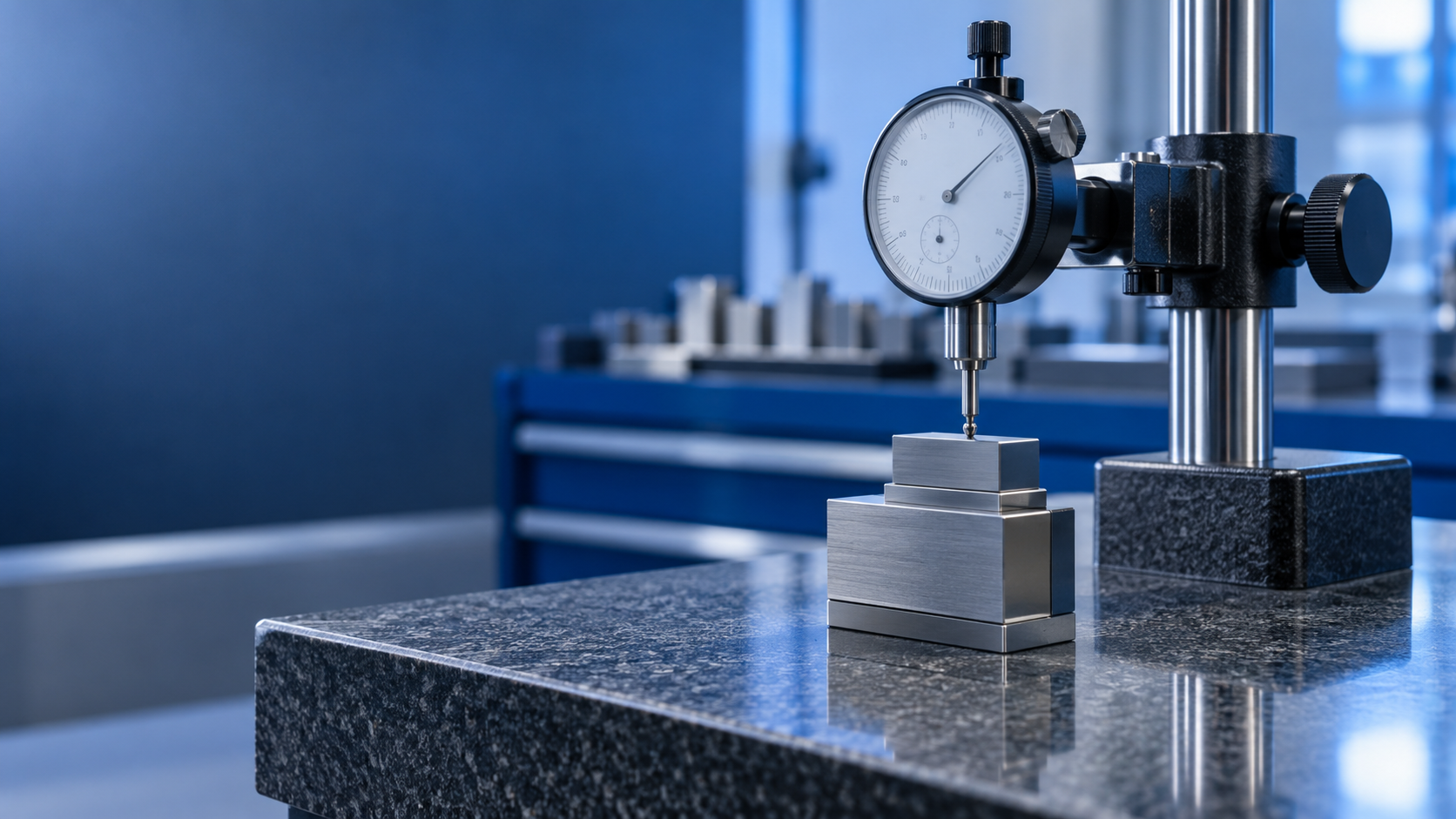

The gauge is positioned using suitable reference equipment. Reference positions are established according to the applicable method, and the corresponding gauge indications are recorded.
A basic indication error can be expressed as:
Error = Indicated Value - Reference Value
The complete calibration result requires more information than one error value.
Repeatability
Repeatability describes the consistency of indications when the same measurement is repeated under defined conditions.
This matters during dimensional inspection because variation in the measuring system can affect the interpretation of production measurements.
Hysteresis
Hysteresis can become visible when a measurement position is approached from different directions. The indication obtained while increasing displacement may differ from the indication obtained while decreasing displacement.
The applicable calibration method should define how reversal-of-movement behaviour is evaluated and reported.
Performance Across the Measuring Range
A gauge should be evaluated at the positions required by the applicable method. One successful measurement point should not be treated as evidence of performance throughout the complete range.
Do not use an arbitrary online checklist as an acceptance specification.Calibration points, methods and acceptance limits should come from the applicable standard, manufacturer's specification, customer requirement or controlled laboratory procedure.
Dial Gauge Calibration in Precision Manufacturing
Consider a dimensional inspection performed after machining or grinding. A small dimensional deviation appears on the gauge.
The measurement result needs to be interpreted together with information about the instrument and the manufacturing process.
| Observation | Possible explanation | Next investigation |
|---|---|---|
| Dimensional deviation appears | The manufacturing process may have changed. | Review process conditions and measurement history. |
| Gauge readings are inconsistent | The measurement system may contribute variation. | Review instrument condition, calibration and repeatability. |
| Deviation remains after instrument verification | The component or process may genuinely have changed. | Investigate tooling, grinding, thermal, fixturing or other applicable process factors. |
Calibration data can therefore contribute to a wider investigation of measurement and manufacturing behaviour.
Measurement result → Review → Investigation → Engineering decision
If repeated measurements show a genuine dimensional trend, engineers can investigate the manufacturing conditions associated with that change. If the instrument itself shows excessive error, the measurement system needs attention before production data is interpreted.
Measurement Uncertainty in Dial Gauge Calibration
A calibration result should not be reduced to a statement that an instrument is simply "accurate" or "inaccurate."
Measurement uncertainty communicates uncertainty associated with the reported measurement result. Its evaluation depends on the laboratory's measurement model and procedure.
Depending on the calibration method, possible contributors can include:
- Reference-standard uncertainty
- Resolution
- Repeatability
- Environmental effects
- Alignment
- Measurement method
- Instrument behaviour
Read the result and uncertainty together.Measurement uncertainty is information about the measurement result. It should not be treated as another name for instrument accuracy.
NABL Dial Gauge Calibration and Accredited Scope
NABL accreditation applies to activities included within an accredited laboratory's scope. The presence of NABL accreditation does not mean that every calibration service advertised by a laboratory is automatically accredited.
For a calibration requiring accreditation, check the laboratory's current scope for the relevant instrument, parameter, range and method.
Check these details before ordering:
- Instrument type
- Measurement range
- Calibration parameter
- Applicable method or standard
- Calibration measurement capability
- Reported measurement uncertainty
- Whether the requested activity is within the laboratory's accredited scope
Scope verification is more useful than relying on the word "NABL" alone in a quotation or service description.
What a Dial Gauge Calibration Certificate Should Contain
A useful calibration certificate should provide enough technical information for the user to understand the instrument, reference system, method and reported results.
- Instrument identification
- Manufacturer and model, where applicable
- Range and resolution
- Calibration date
- Calibration method or standard
- Reference standards used
- Measurement results
- Error or deviation
- Measurement uncertainty
- Environmental conditions, where relevant
- Traceability information
- Conformity statement and decision rule, where applicable
- Laboratory authorization
The individual results can provide useful information about how the instrument behaves across the calibration range.
Calibration, Verification and Routine Checks
| Activity | Purpose |
|---|---|
| Routine check | Looks for obvious conditions such as zero error, damage or abnormal operation. |
| Calibration | Compares measurement indications with suitable reference values under defined conditions and documents the results. |
| Verification | Determines whether specified requirements have been met when an applicable requirement and decision rule are defined. |
These activities have different purposes. A workshop zero check can identify an obvious problem, but it does not necessarily provide the measurement evidence associated with formal calibration.
Dial Gauge Calibration Procedure
Identify → Inspect → Stabilize → Mount → Measure → Evaluate → Report
- Identify the instrument.Record manufacturer, model, identification number, range and resolution.
- Inspect the condition.Check the plunger, bezel, pointer, mounting arrangement and mechanical movement.
- Clean relevant contact surfaces.Remove contamination that could affect the measurement.
- Control the measurement conditions.Allow the instrument and reference equipment to reach suitable environmental conditions.
- Select suitable reference equipment.Use dimensional standards and equipment with appropriate capability and traceability.
- Select calibration positions.Follow the applicable calibration method.
- Record indications.Record reference values and corresponding gauge indications.
- Evaluate indication error.Compare the gauge indication with the reference value.
- Evaluate repeatability.Assess consistency when required by the method.
- Evaluate hysteresis.Where applicable, compare indications associated with reversal of movement.
- Evaluate measurement uncertainty.Apply the laboratory's measurement model and uncertainty procedure.
- Apply the relevant decision rule.Where conformity is required, use the applicable specification and documented decision rule.
- Issue the calibration documentation.Report the required results, uncertainty, traceability and other technical information.
Using Calibration Results to Review Instrument Drift
Calibration records can become more useful when results from successive calibration events are reviewed together.
For example, a repeated change in indication error may justify an investigation of instrument condition, usage, handling or measurement practice. The appropriate conclusion depends on the actual calibration records.
Calibration result → Historical comparison → Risk review → Appropriate action
Production measurements can also be reviewed alongside calibration information. When a dimensional trend appears, the measurement system and manufacturing process should both be considered.
Common Dial Gauge Calibration Mistakes
- Assuming zero return proves full-range performance.
- Checking only one calibration position.
- Ignoring reversal-of-movement behaviour when the applicable method requires it.
- Confusing resolution with measurement uncertainty.
- Selecting a laboratory only because it advertises NABL accreditation.
- Failing to check the current accredited scope.
- Using an older standard without confirming its current applicability.
- Looking only at a pass/fail statement and ignoring individual results.
- Interpreting production measurements without considering the measurement system.
Questions to Ask Before Ordering Calibration
- Is the laboratory accredited for the required calibration activity?
- Is the instrument type covered?
- Is the required measurement range covered?
- Which standard or method will be used?
- What measurement capability and uncertainty are available?
- Will individual measurement results be reported?
- Will repeatability or hysteresis be evaluated when required?
- Will traceability information be provided?
- If a conformity statement is required, which decision rule will be used?
- Is the laboratory arrangement technically suitable for the application?
Why Dial Gauge Calibration Matters in Manufacturing
A dial gauge is part of the measurement system used to make dimensional decisions. Its readings can influence inspection results, process investigations and corrective actions.
Calibration therefore provides evidence about the behaviour of the instrument under the defined calibration conditions.
Gauge → Measurement → Evidence → Process decision
For precision manufacturing, the useful question is how the measurement result, instrument performance and engineering requirement relate to one another.
Frequently Asked Questions
What is dial gauge calibration?
It is the controlled comparison of a dial gauge's indications with suitable reference values under defined conditions, with the results documented according to the applicable method.
Does zero checking calibrate a dial gauge?
No. A zero check is a routine condition check. It does not by itself establish instrument performance throughout the measuring range.
What is repeatability in dial gauge calibration?
Repeatability concerns the consistency of indications when measurements are repeated under defined conditions.
What is hysteresis in a dial gauge?
Hysteresis describes a difference in indication associated with the direction from which a measurement position is approached. The applicable calibration method should determine how it is evaluated.
Does NABL accreditation cover every calibration service offered by a laboratory?
No. Accreditation applies to activities within the laboratory's accredited scope. The instrument, parameter, range and method should be checked against the current scope.
Why is measurement uncertainty reported?
It communicates uncertainty associated with the reported measurement result and should be interpreted together with the calibration result.
Why does dial gauge calibration matter in precision manufacturing?
Measurement results can influence component acceptance, process investigation and corrective-action decisions. Calibration helps provide evidence about the behaviour of the measuring instrument.
Technical Review Note
This article is an educational guide. It does not replace a laboratory's controlled calibration procedure, applicable standards, manufacturer instructions, customer specifications or the current NABL accreditation scope. Confirm the applicable requirements before placing a calibration order or making a conformity decision.
