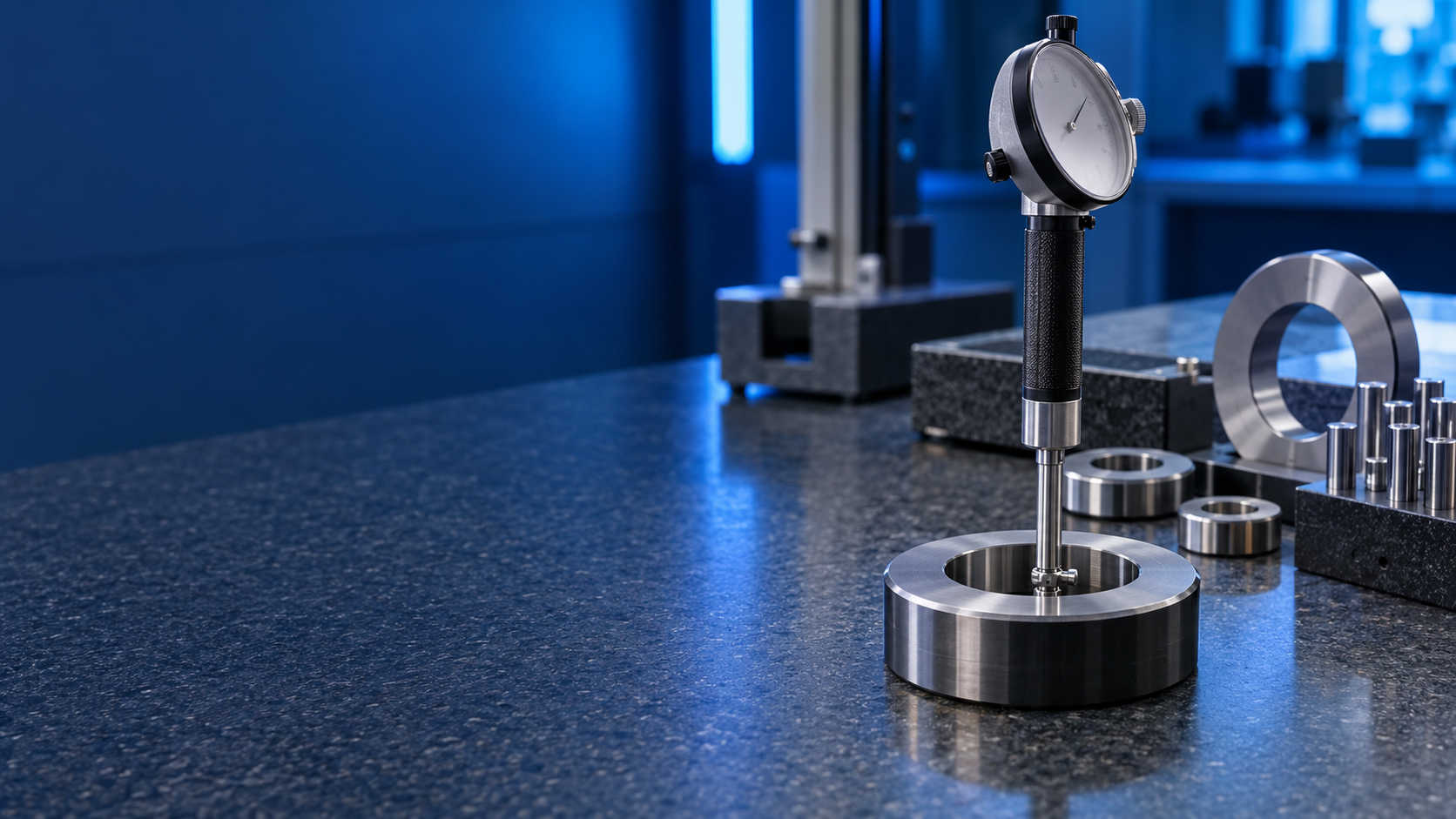

A bore gauge can be correctly zeroed and still need calibration evidence before its readings can be trusted for a specific application. Zeroing establishes the working reference. Calibration examines the relationship between known reference values and the gauge’s indications under stated conditions.
This guide explains the main concepts involved in bore gauge calibration, including transmission error, repeatability, measurement uncertainty, Calibration and Measurement Capability (CMC), NABL scope verification and certificate review.
It offers general metrology guidance. It does not replace the manufacturer’s instructions, a laboratory’s validated procedure, an applicable calibration method, a customer specification or an accreditation-body requirement. All numerical examples are illustrative. They are not laboratory results, calibration limits, market data or claims about laboratory capability.
What Is Bore Gauge Calibration?
A bore gauge is generally used as a comparative measuring instrument. It is set against a known dimension, then used to show how a measured internal dimension differs from that reference.
Calibration is more than confirming that the pointer moves or returns to zero. It establishes a relationship between values provided by measurement standards and corresponding indications from the instrument under stated conditions. The resulting calibration information is then used to obtain measurement results, together with the associated measurement uncertainty.
Relevant terminology is defined in the International Vocabulary of Metrology (VIM), published as JCGM 200.
A useful conceptual chain is:
Reference standard → Setting condition → Bore gauge → Transmission mechanism → Indication → Error and repeatability → Measurement uncertainty → Decision
The correct calibration process depends on the gauge design, measuring range, parameter being calibrated, applicable method and capability required by the intended use.
Calibration, Setting, Adjustment and Verification
These terms are often used as though they mean the same thing. They don’t.
| Term | General meaning |
|---|---|
| Calibration | Establishes a relationship between reference values and instrument indications under stated conditions. |
| Setting | Establishes the working reference or nominal position used during measurement. |
| Adjustment | Changes a measuring system so its indications correspond to prescribed values. |
| Verification | Provides objective evidence that specified requirements have been fulfilled. |
Setting is not calibration. Adjustment is not calibration. Verification is not calibration.
A bore gauge may be set before every use and still require formal calibration. A calibration certificate also does not necessarily mean that the gauge was adjusted. The certificate should state whether an adjustment or repair was performed.
The VIM should be consulted for formal definitions and notes applicable to each term.
Why Resolution Is Not Accuracy
Resolution is the smallest change in the measured quantity that causes a perceptible change in the indication under stated conditions. It does not, by itself, establish measurement error or uncertainty.
For example:
Resolution = 0.001 mm
does not mean:
Measurement error ≤ 0.001 mm
These quantities describe different parts of instrument performance.
| Characteristic | What it describes |
|---|---|
| Resolution | The smallest indicated increment or detectable change under stated conditions. |
| Indication error | The difference between an indication and a reference quantity value, using the stated sign convention. |
| Repeatability | Agreement among repeated results obtained under defined repeatability conditions. |
| Measurement uncertainty | A non-negative parameter describing the dispersion of quantity values attributed to a measurand. |
A gauge can have fine resolution and still show significant systematic error. It can also be accurate near one part of its range but less accurate elsewhere. Resolution, indication error, repeatability and uncertainty must therefore be evaluated separately.
Bore Gauge Types and Calibration Considerations
Bore gauges vary in construction and operating principle. One procedure should not be assumed to cover every design.
| Bore gauge type | Typical principle | Important considerations |
|---|---|---|
| Dial bore gauge | Mechanical displacement is transmitted to a dial indicator. | Transmission behavior, repeatability, range and contact geometry. |
| Digital bore gauge | Mechanical displacement is converted into an electronic indication. | Resolution, indication error, repeatability and uncertainty. |
| Two-point bore gauge | Contact geometry is used to compare an internal dimension. | Setting reference, alignment and contact conditions. |
| Specialized bore gauge | An application-specific mechanical or electronic system is used. | Manufacturer’s method, configuration and intended application. |
Before requesting calibration, identify:
- Manufacturer and model
- Serial number or asset ID
- Instrument type
- Measuring range
- Resolution
- Required calibration parameter
- Required uncertainty, if known
- Applicable method or customer requirement
- Whether accredited calibration is required
This information helps the laboratory determine whether its method, reference system and accredited scope cover the requested service.
General Calibration Workflow
The following workflow is intended for planning. It is not a universal calibration procedure. The laboratory’s validated method, the manufacturer’s instructions, the instrument design and the required capability determine the actual process.
Step 1: Identify the instrument
Record the manufacturer, model, serial number or asset ID, gauge type, measuring range and resolution.
Step 2: Inspect its condition
Inspect the relevant components in line with the manufacturer’s instructions or laboratory procedure. Depending on the design, these may include:
- Contact points
- Measuring spindle
- Transmission mechanism
- Dial or electronic display
- Mounting arrangement
- Locking mechanism
- Visible damage
- Contamination or corrosion
Any condition that may affect calibration should be documented and handled according to the applicable procedure.
Step 3: Stabilize the equipment when required
Allow the bore gauge and reference standards to reach suitable environmental and operating conditions when the method requires it. Temperature, stabilization time and other conditions should come from the applicable method, manufacturer’s instructions, customer requirement or laboratory procedure.
Step 4: Establish a suitable reference
Depending on the gauge and calibration method, the reference system may include:
- A setting ring
- A master setting tool
- A calibrated micrometer
- A dial calibration tester
- A universal length-measuring machine
- Another calibrated reference system
The chosen reference must be suitable for the parameter, range and uncertainty required.
Step 5: Record the initial condition
If as-found results are required, record them before adjustment or repair. Adjusting the gauge first may destroy useful evidence about its condition while it was in service.
Step 6: Select appropriate test points
Use the test points specified by the applicable method, manufacturer, customer or laboratory procedure. The selected points should represent the measuring range and intended application.
Step 7: Record indications
Record the gauge indications. Where required, include repeated observations, increasing and decreasing measurements, or other directional results.
Step 8: Calculate indication error
This article uses the following sign convention:
E = I − R
where:
- E = indication error
- I = instrument indication
- R = reference value
Sign conventions can differ. The laboratory’s method and certificate should state or make clear which convention is used.
Step 9: Evaluate measurement uncertainty
The laboratory should evaluate uncertainty using its measurement model, calibration method and uncertainty procedure. Relevant contributions may come from the reference standard, repeatability, resolution, temperature, alignment, fixtures, contact geometry and other effects.
Step 10: Apply an acceptance criterion when required
A pass/fail or conformity decision requires an identified specification, manufacturer’s limit, customer requirement, regulation or other defined criterion.
Where applicable, the certificate or supporting agreement should identify the decision rule and explain how measurement uncertainty was treated. Calibration does not automatically include a conformity statement.
Reference Standards and Setting Systems
The reference is a central part of the measurement chain. Its suitability depends on the instrument, calibration parameter, range, application and required uncertainty.
| Reference | Possible use | Questions to ask |
|---|---|---|
| Setting ring | Internal-dimension reference | Is it suitable for the nominal size and required uncertainty? |
| Master setting tool | Controlled setting reference | What are its calibration status, value and uncertainty? |
| Micrometer | Dimensional reference in a suitable method | Is its capability adequate for this gauge and application? |
| Dial calibration tester | Controlled displacement comparison | Does it cover the required displacement and parameter? |
| Universal length-measuring machine | High-accuracy dimensional comparison | Is the selected method suitable for the gauge’s design? |
Metrological traceability requires a documented, unbroken calibration chain in which each calibration contributes to the measurement uncertainty. The reference values, associated uncertainties and relevant calibration information must be suitable for the result being reported.
Convenience alone is not a sound reason to choose a reference. The reference system must be technically fit for the measurement task.
What Is Bore Gauge Transmission Error?
Transmission error describes the behavior of the relationship between an applied displacement and the resulting indication when that characteristic is included in the calibration method.
A conceptual model is:
Reference displacement → Mechanical transmission → Contact mechanism → Indicator or display → Observed indication
The observed behavior may include:
- A constant offset
- Progressive error across the range
- Localized deviation
- Direction-dependent response
- Variation limited by repeatability
These patterns must be established through valid measurements. They cannot be inferred from the instrument’s resolution or from a generic example.
Consider this illustrative calculation:
Reference value: 5.000 mm
Indication: 5.006 mm
Convention: E = I − R
Therefore:
E = 5.006 mm − 5.000 mm = +0.006 mm = +6 µm
This example shows only how the calculation works. It is not an actual calibration result, instrument specification, acceptance limit or statement about industry performance.
A laboratory should not be assumed to report transmission error unless the parameter is included in the requested service, supported by its method and—when accredited reporting is needed—covered by its current accreditation scope.
Repeatability and Direction Effects
Repeatability concerns agreement among repeated measurements performed under defined repeatability conditions.
A bore gauge may show a small average indication error but poor repeatability. It may also be highly repeatable while having a systematic indication error. Either condition can affect whether the instrument is suitable for its intended use.
The following values are illustrative:
| Reference | Increasing indication | Decreasing indication | Increasing minus decreasing |
|---|---|---|---|
| 0.200 mm | 0.202 mm | 0.203 mm | −1 µm |
| 0.500 mm | 0.505 mm | 0.507 mm | −2 µm |
| 0.800 mm | 0.810 mm | 0.813 mm | −3 µm |
These values explain a comparison only. They are not measured industry data and should not be attributed to a particular gauge, laboratory or instrument type.
The applicable calibration method should define how repeated observations and increasing or decreasing measurements are performed, recorded and evaluated.
Measurement Uncertainty
Measurement uncertainty is not the same as measurement error.
Error describes a difference between an indication and a reference value using a defined convention. Uncertainty describes the dispersion of quantity values attributed to the measurand.
The Guide to the Expression of Uncertainty in Measurement provides general principles for evaluating and expressing uncertainty.
Depending on the measurement model, contributors may include:
- Reference-standard uncertainty
- Repeatability
- Resolution
- Temperature
- Alignment
- Fixture effects
- Contact geometry
- Other effects identified by the laboratory
This list is neither automatic nor exhaustive. The laboratory must identify the contributors that matter to its specific process.
For uncorrelated input quantities in a simplified model, combined standard uncertainty may be expressed as:
u₍c₎ = √(u₁² + u₂² + u₃² + …)
Expanded uncertainty may then be expressed as:
U = k × u₍c₎
where k is the coverage factor.
An actual uncertainty calculation may also require sensitivity coefficients, correlations, probability distributions, effective degrees of freedom and other considerations specified by the laboratory’s model and procedure.
Illustrative uncertainty budget
| Component | Illustrative standard uncertainty |
|---|---|
| Reference standard | 1.0 µm |
| Repeatability | 1.5 µm |
| Resolution | 0.29 µm |
| Temperature | 0.5 µm |
| Alignment | 0.8 µm |
These figures are examples only. They do not represent a laboratory’s uncertainty budget, CMC or performance.
Calibration and Measurement Capability
Calibration and Measurement Capability, usually shortened to CMC, is a scope-specific statement of capability. It must be read together with the measurement parameter, range, method, conditions and uncertainty expression shown in the accreditation scope.
When comparing laboratories, review:
- Measurement parameter
- Instrument type
- Nominal value or range
- Calibration method
- CMC
- Relevant environmental or operating conditions
- Expected reported uncertainty
- Current accreditation scope
A lower numerical CMC does not prove that one laboratory is better for every job. The comparison must cover the same parameter, range, method and conditions.
CMC is not the same as:
- Instrument resolution
- Instrument accuracy
- A customer’s tolerance
- The uncertainty reported for every calibration
- A guarantee that every submitted instrument can be calibrated at the stated CMC
The laboratory’s detailed accreditation scope and the applicable uncertainty policy should be reviewed before relying on a CMC comparison.
NABL Accreditation and Scope
ISO/IEC 17025 specifies general requirements for the competence, impartiality and consistent operation of testing and calibration laboratories.
NABL accreditation is scope-based. A laboratory may offer services that are not included in its accredited scope, so a general claim that a laboratory is “NABL accredited” is not enough to confirm coverage for a particular bore gauge.
Before ordering calibration, verify the laboratory’s current accreditation certificate and detailed scope for:
- The exact calibration parameter
- Instrument type
- Measuring range
- Method or reference technique
- CMC or stated capability
- Relevant conditions
- Current accreditation status
A useful question to send the laboratory is:
Can you calibrate this exact bore gauge over the required range, for the requested parameter, within your current NABL-accredited scope, and report the measurement results and uncertainty needed for my application?
Accreditation status and scope can change. Check the current NABL records at the time the laboratory is selected and retain evidence of the scope reviewed.
Reviewing a Bore Gauge Calibration Certificate
A useful certificate should provide enough information to understand what was calibrated, how it was identified, which parameter was evaluated, which references were used and what results were obtained.
Exact reporting requirements depend on the applicable version of ISO/IEC 17025, NABL requirements, the laboratory’s procedure, the calibration method and the customer agreement. The table below is a practical review aid, not a complete list of mandatory fields.
| Certificate information | Why it matters |
|---|---|
| Instrument identification | Connects the certificate to the physical gauge. |
| Manufacturer and model | Identifies its design and configuration. |
| Serial number or asset ID | Provides unique identification. |
| Measuring range | Defines the interval to which the results apply. |
| Calibration parameter | Shows what characteristic was evaluated. |
| Test points | Shows where the gauge was evaluated. |
| Indications and errors | Records the relationship between indication and reference. |
| Measurement uncertainty | Describes uncertainty associated with the reported result. |
| Reference standards | Identifies the measurement references used. |
| Traceability information | Supports review of the calibration chain. |
| Method or procedure | Identifies how the calibration was performed. |
| Environmental conditions | Provides relevant conditions where they affect the result. |
| As-found and as-left status | Distinguishes results before and after intervention. |
| Acceptance criterion | Identifies the basis of a conformity statement, if one was made. |
| Decision rule | Explains how uncertainty was considered in a conformity decision, when applicable. |
| Accreditation identification | Helps determine whether the reported work is within scope. |
Do not assume that transmission error was evaluated merely because the document is titled “bore gauge calibration certificate.” The certificate must explicitly identify the parameter and results.
As-Found and As-Left Results
| Status | Meaning |
|---|---|
| As found | The instrument’s condition before adjustment or repair. |
| Adjustment or repair | An intervention that changes the instrument’s condition. |
| As left | The instrument’s condition after adjustment or repair. |
As-found results can reveal how the instrument performed while in service. If the gauge is adjusted before its original condition is measured and documented, that evidence may be lost.
Whether as-found and as-left data are required depends on the customer agreement, method, laboratory procedure and reporting arrangement. Users who need both should request them before sending the instrument.
Calibration Intervals and Bore Gauge Drift
There is no responsible universal calibration interval for every bore gauge.
The interval may be influenced by:
- Frequency and severity of use
- Production environment
- Contamination
- Storage and handling
- Instrument age
- Repair history
- Previous calibration results
- Measurement risk
- Customer or regulatory requirements
- Observed historical drift
ILAC-G24:2022 / OIML D 10:2022 provides guidance on establishing and reviewing recalibration intervals for measuring equipment.
A simple historical metric may be written as:
Drift rate = (E₍current₎ − E₍previous₎) ÷ elapsed time
This calculation can help analyze changes between calibration events. It does not automatically determine the next due date.
Interval decisions should consider the instrument’s history, required performance, measurement risk, use conditions and applicable quality requirements. A recalibration interval should be reviewed when evidence shows that the existing interval is too long or unnecessarily short.
Bore Gauge Calibration Cost
Calibration cost should be considered alongside technical coverage and service conditions.
| Factor | Why it matters |
|---|---|
| Price | Shows the direct commercial cost. |
| Parameter | Defines what the laboratory will evaluate. |
| Range | Defines the measurement coverage. |
| Test points | Affects the evidence produced. |
| Transmission error | Matters only when included in the service and applicable method or scope. |
| Uncertainty | Describes uncertainty associated with the reported results. |
| Reference system | Forms part of the measurement chain. |
| Certificate contents | Determine what documentary evidence will be supplied. |
| Turnaround | Can affect production or inspection schedules. |
| Accreditation scope | Shows whether the specific service is accredited. |
A generic Indian or Delhi NCR price range should not be published without current, comparable quotations or a transparent market dataset. Quotes should be compared on equivalent technical terms and dated because prices and service conditions change.
How to Choose a Bore Gauge Calibration Laboratory
Before asking for a quotation, prepare the following information:
- Gauge type
- Manufacturer
- Model
- Serial number or asset ID
- Measuring range
- Resolution
- Required calibration parameter
- Required uncertainty, if known
- Accreditation requirement
- Certificate requirements
- Required turnaround time
Ask the laboratory to confirm:
- Whether it can calibrate the exact instrument.
- Whether the required range is covered.
- Which parameter will be evaluated.
- Whether the work falls within its current accredited scope.
- Which method or procedure will be used.
- What uncertainty is expected to be reported.
- Whether as-found and as-left results will be supplied.
- Whether transmission error will be evaluated, if required.
- Which results and technical details will appear on the certificate.
- Which decision rule will be used if a conformity statement is requested.
Confirm technical coverage before making price the main deciding factor.
Frequently Asked Questions
Is zeroing a bore gauge the same as calibration?
No. Zeroing or setting establishes a working reference. Calibration establishes the relationship between reference values and indications under stated conditions.
Does a resolution of 0.001 mm mean an accuracy of 0.001 mm?
No. Resolution, indication error, repeatability and measurement uncertainty describe different characteristics.
What is transmission error in a bore gauge?
It describes the behavior of the relationship between an applied reference displacement and the resulting indication when the applicable calibration method evaluates that characteristic.
Does NABL accreditation mean every laboratory service is accredited?
No. Accreditation is limited to the activities listed in the laboratory’s current scope. Check the exact parameter, instrument type, range, method and CMC.
What should I check on a bore gauge calibration certificate?
Check instrument identification, range, calibration parameter, test points, indications, errors, uncertainty, reference standards, traceability information, method, relevant environmental conditions, as-found or as-left status and the basis of any conformity statement.
How often should a bore gauge be calibrated?
There is no universal interval. Consider previous results, frequency and conditions of use, instrument condition, measurement risk, required performance and customer or quality-system requirements. ILAC-G24:2022 / OIML D 10:2022 provides interval-review guidance.
Why is as-found information important?
It records the instrument’s condition before adjustment or repair and may reveal how it performed while in service.
Can calibration price alone be used to select a laboratory?
No. Compare price with parameter coverage, range, method, CMC, expected uncertainty, accreditation scope, certificate contents and turnaround.
Does every bore gauge calibration include transmission error?
Not necessarily. Ask whether transmission error is part of the method, requested service, reported results and accredited scope.
Does a calibration certificate automatically mean the gauge passed?
No. Calibration reports measurement results. A pass/fail statement requires an identified specification and, where applicable, a stated decision rule.
Documenting the Measurement Decision
Bore gauge calibration should be treated as measurement evidence, not as a zero-setting exercise.
A useful conceptual chain is:
Reference → Setting → Bore gauge → Transmission → Indication → Error → Repeatability → Uncertainty → CMC → Accreditation scope → Certificate → Measurement decision
Strong technical decisions combine accepted metrology definitions, suitable methods, current accreditation information and genuine measurement evidence.
For Indian users, the practical priority is to verify the laboratory’s current scope for the exact bore gauge parameter and range. A general “NABL accredited” statement is not enough.
Primary references
- Joint Committee for Guides in Metrology, International Vocabulary of Metrology - Basic and General Concepts and Associated Terms, JCGM 200:2012.
- Joint Committee for Guides in Metrology, Evaluation of Measurement Data - Guide to the Expression of Uncertainty in Measurement, JCGM 100:2008, together with Amendment 1:2026 on nonlinearity in measurement models.
- Joint Committee for Guides in Metrology, Guide to the Expression of Uncertainty in Measurement - Part 1: Introduction, JCGM GUM-1:2023.
- International Organization for Standardization, ISO/IEC 17025:2017 - General requirements for the competence of testing and calibration laboratories. ISO lists the 2017 edition as current.
- International Laboratory Accreditation Cooperation, ILAC P14:09/2020 - ILAC Policy for Measurement Uncertainty in Calibration.
- International Laboratory Accreditation Cooperation and International Organization of Legal Metrology, ILAC-G24:2022 / OIML D 10:2022 - Guidelines for the Determination of Recalibration Intervals of Measuring Equipment.
- National Accreditation Board for Testing and Calibration Laboratories, current accreditation documents and detailed laboratory scopes, including NABL 129 and NABL 143 where applicable.
Standards, policies and accreditation scopes can change. Verify the current edition and laboratory scope before using them for a contractual, regulatory or conformity decision.
Official source pages: BIPM JCGM publications, ISO/IEC 17025:2017, ILAC policy series, ILAC-G24:2022 / OIML D 10:2022, and NABL accreditation documents.
