Review common EV battery enclosure failure modes and connect each risk with suitable design evidence, manufacturing controls, inspection, and validation.

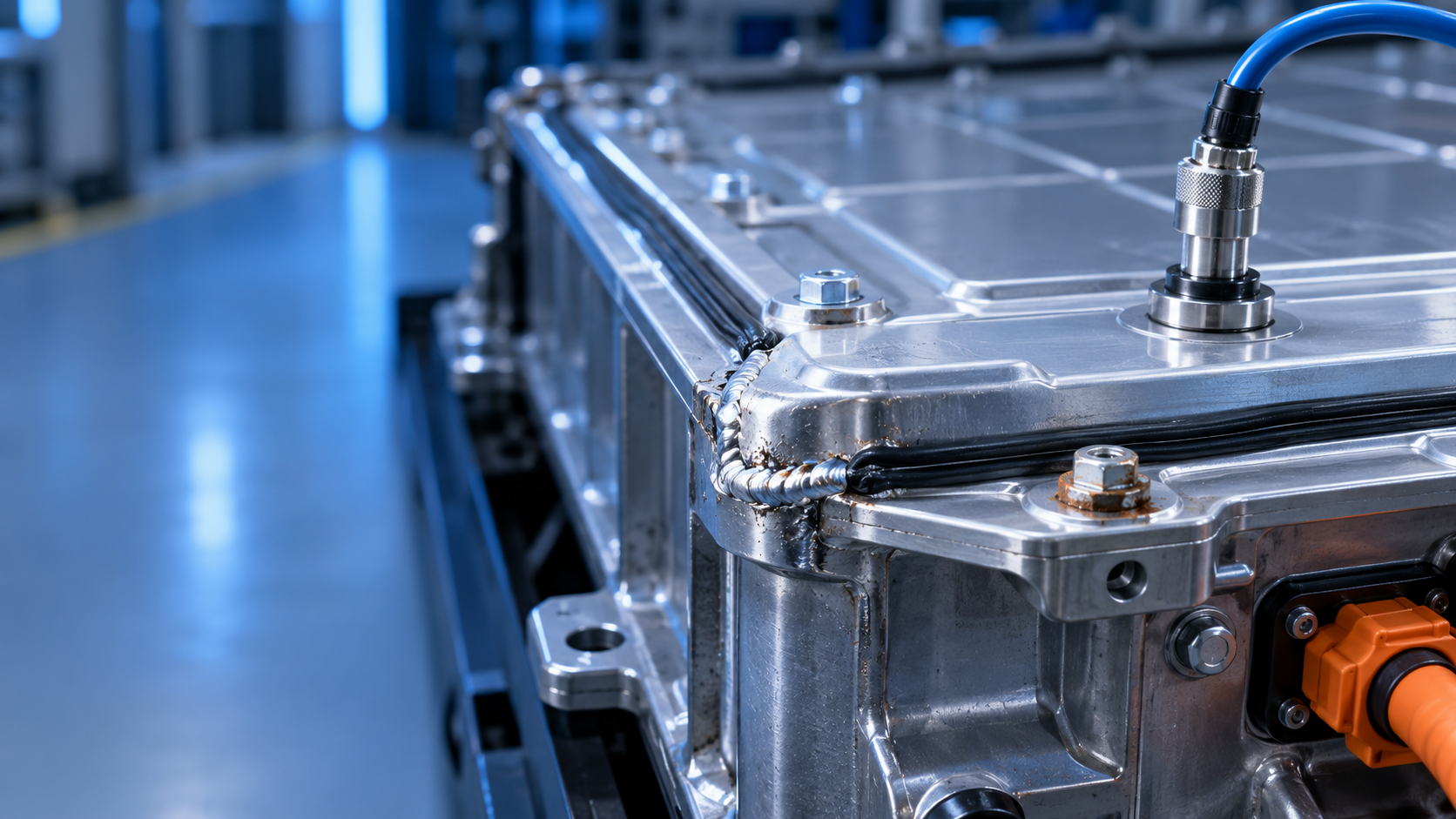

Common EV Battery Enclosure Failure Modes
EV battery enclosure problems can begin during design, material preparation, forming, machining, casting, welding, sealing, assembly, or vehicle operation. A useful failure-mode review connects each potential failure with its likely cause, a suitable detection method, and a control placed at the process stage where the variation can be introduced.
The controls and tests described below are examples of an engineering-quality framework. They are not universal acceptance criteria. The required test method, severity, sampling plan, and pass/fail limit must come from the applicable vehicle regulations, engineering drawings, customer requirements, validation plan, and referenced standards.
For road-vehicle electrical equipment, ISO 20653 addresses degrees of protection provided by enclosures against foreign objects, water, and access. The ISO 16750 series describes environmental conditions and tests for electrical and electronic equipment mounted directly on or in a vehicle. The applicable edition and test level must be confirmed for the vehicle program. (ISO 20653; ISO 16750)
Where vehicle approval is governed by UNECE requirements, Regulation No. 100 includes provisions concerning rechargeable energy storage systems and protection against water ingress. The exact requirements depend on the applicable series of amendments, vehicle category, approval route, and system configuration. (UNECE Regulation No. 100 material)
EV Battery Enclosure Failure-Mode Matrix
| Failure mode | Possible cause | Example detection method | Typical control |
|---|---|---|---|
| Weld porosity | Contamination, unsuitable parameters, or inadequate shielding | Weld inspection or applicable NDT | Qualified process, cleanliness control, parameter monitoring |
| Weld distortion | Excessive or poorly distributed heat input, fixture movement, or sequence effects | CMM, optical measurement, or laser scanning | Controlled sequence, fixture control, dimensional verification |
| Gasket or seal failure | Incorrect material, damage, poor placement, uneven compression, or surface defects | Leak testing against the specified requirement | Controlled installation, compression control, final verification |
| Water ingress | Failed seal, crack, weld discontinuity, or incorrectly assembled interface | Ingress or leak testing selected for the design | Design validation, process controls, environmental testing |
| Corrosion | Moisture, salt exposure, coating damage, trapped fluid, or galvanic interaction | Environmental exposure and inspection | Material/coating control and dissimilar-metal isolation |
| Dimensional error | Forming, casting, machining, welding, or fixture variation | CMM, optical measurement, or other suitable inspection | SPC where appropriate, fixture control, critical-feature checks |
| Impact deformation | Underbody impact or insufficient local and global structural capacity | Physical testing and engineering analysis | Structural design, impact validation, post-test inspection |
| Fastener failure | Incorrect specification, torque, seating, thread condition, or fatigue | Torque or joint verification | Controlled installation and traceability |
| Thermal-interface problem | Poor contact, gap variation, surface condition, or assembly error | Thermal-performance testing | Interface-geometry and assembly control |
| Fatigue cracking | Repeated vibration, load cycles, weld defects, or stress concentrations | Durability testing and post-test inspection | Fatigue-oriented design, joining control, representative validation |
The matrix is a planning tool. It does not replace a design FMEA, process FMEA, control plan, drawing, or validation specification.
1. Weld Porosity
Porosity occurs when gas becomes trapped in a weld. Depending on the joint location and design function, porosity may affect structural performance, leak tightness, fatigue life, or the ability of the joint to meet the applicable weld-quality requirement.
Potential causes include material or surface contamination, unsuitable welding parameters, inadequate shielding, poor joint preparation, and process instability.
Detection should be selected according to the joint function, material, thickness, access, defect type, and governing specification. Visual inspection alone should not be described as sufficient unless the applicable requirement says so. Other methods may include radiographic, ultrasonic, dye-penetrant, or leak-related inspection, when suitable for the joint and approved by the responsible engineering authority.
Prevention normally includes:
- Control of material and joint cleanliness.
- Control of shielding conditions.
- Qualified welding procedures and equipment.
- Monitoring of critical process parameters.
- Operator or equipment qualification where required.
- Verification of weld quality against the applicable drawing or weld standard.
No universal porosity limit should be stated without identifying the applicable weld-quality standard and acceptance class.
2. Weld Distortion
Welding can change the geometry of aluminum and other enclosure materials through localized heating, shrinkage, and residual stress. Distortion may affect sealing surfaces, mounting points, internal clearances, cooling interfaces, and downstream assembly.
Potential controls include a defined welding sequence, suitable fixturing, controlled heat input, joint-design review, and dimensional verification after the operations most likely to change critical features.
CMM measurement, optical measurement, laser scanning, gauges, or other systems may be appropriate. The selected method must provide adequate range, resolution, uncertainty, and accessibility for the characteristic being measured.
A dimensional result does not automatically demonstrate that the enclosure meets its functional requirements. Critical dimensions should be linked to the applicable drawing, datum scheme, tolerance, and measurement plan.
3. Gasket and Seal Failure
Sealing performance depends on the gasket or seal material, groove or flange geometry, surface condition, compression, assembly position, fastener loading, and environmental exposure.
A gasket may leak even when it is present if it is damaged, displaced, contaminated, incorrectly sized, or compressed unevenly. Seal performance can also be affected by flange distortion, surface defects, joint movement, temperature, chemical exposure, and aging.
Controls should address:
- Approved gasket or seal material.
- Storage and handling conditions.
- Correct placement and orientation.
- Surface cleanliness and condition.
- Required compression or joint gap.
- Fastening sequence and joint loading.
- Protection against cuts, pinching, and extrusion.
- Final leak or pressure-decay testing where required.
Leak-test method, pressure, duration, fluid, temperature, and allowable leak rate must be taken from the applicable product specification or validation plan. A dimensional inspection does not by itself prove that an enclosure is leak-tight.
4. Water Ingress
Water can enter through failed seals, cracks, weld discontinuities, porous materials, cable or connector interfaces, drains, vents, or incorrectly assembled joints.
For road-vehicle electrical equipment, ISO 20653 provides a framework for enclosure protection ratings against water and access. The required IP code and test procedure must be specified for the particular equipment and mounting location; the standard should not be used to imply that every battery enclosure requires the same rating. (ISO 20653)
UNECE Regulation No. 100 also contains provisions concerning protection against water ingress for applicable rechargeable energy storage systems. Regulatory applicability and the precise test conditions must be checked against the current applicable text and approval category. (UNECE Regulation No. 100 material)
Ingress prevention should be addressed through:
- Joint and seal design.
- Weld and casting integrity.
- Connector and cable-interface design.
- Drainage and pressure-equalization provisions where applicable.
- Assembly controls.
- Design-validation testing.
- Production leak testing when required.
Ingress testing and production leak testing do not necessarily answer the same question. A validation test may represent an environmental exposure, while a production test may be intended to detect manufacturing defects. The relationship between the two should be defined in the validation and control plans.
5. Corrosion
Underbody battery enclosures may experience moisture, road contaminants, salt, temperature changes, mechanical damage, and contamination retained at joints or interfaces.
Corrosion risk may increase when dissimilar metals are electrically connected in the presence of an electrolyte. Coating damage, inadequate surface preparation, trapped moisture, crevices, and poor drainage can also contribute.
Controls may include:
- Material and coating selection.
- Surface-preparation control.
- Coating-thickness or coverage verification where specified.
- Electrical isolation of dissimilar materials where required.
- Joint and fastener compatibility review.
- Drainage and contamination-management provisions.
- Environmental validation appropriate to the vehicle location.
Corrosion-test duration, exposure medium, temperature, cycling, and acceptance criteria must not be invented or generalized. They should be taken from the applicable customer specification, material/coating specification, validation plan, or environmental standard. The ISO 16750 series is relevant to environmental conditions and testing for vehicle-mounted electrical and electronic equipment, but the applicable part and severity must be identified for the product. (ISO 16750)
6. Dimensional Error
Forming, casting, machining, welding, coating, sealing, and fixture variation can change critical enclosure dimensions. The consequences may include:
| Dimensional area | Potential consequence |
|---|---|
| Mounting-hole location | Assembly difficulty or misalignment |
| Sealing-surface geometry | Uneven gasket compression |
| Panel profile | Clearance or fit problems |
| Datum relationship | Downstream assembly variation |
| Overall enclosure dimensions | Vehicle-pack integration problems |
| Cooling-interface geometry | Nonuniform contact or thermal performance |
| Internal clearance | Contact, abrasion, or serviceability risk |
Measurement methods may include CMMs, optical systems, laser scanners, gauges, calipers, or micrometers. The method should be selected according to the characteristic, tolerance, surface, access, production volume, and required decision risk.
Prevention may include process capability studies, fixture control, datum management, in-process checks, first-piece approval, and statistical process control where appropriate. Acceptance must be based on the drawing or specification, not on an unspecified general tolerance.
7. Impact Deformation
An underbody impact can deform an enclosure, its mounting structure, or attached components. Possible consequences include reduced internal clearance, damage to modules or busbars, loss of sealing integrity, movement of cooling interfaces, damage to mounting points, or exposure of electrically hazardous parts.
Impact performance must be evaluated using the requirements applicable to the vehicle, enclosure location, battery design, and approval route. Physical testing, engineering analysis, or a combination of both may be used when justified by the validation plan.
Controls may include:
- Load-path and mounting review.
- Local reinforcement where required.
- Protection of vulnerable interfaces.
- Clearance analysis.
- Material and joining-process review.
- Post-impact inspection for deformation, cracking, leakage, and electrical safety.
- Correlation of analysis with representative physical tests.
The article should not state a universal impact energy, deformation limit, or test method unless the applicable regulation or product specification is named.
8. Fastener Failure
Fastener-related problems may result from an incorrect fastener specification, damaged threads, inadequate seating, incorrect torque, uncontrolled friction, joint relaxation, loss of preload, corrosion, or fatigue.
A torque value should never be presented as universally applicable. The required installation condition must come from the joint design, fastener specification, drawing, process instruction, or validated joint-control plan.
Useful controls include:
- Correct fastener grade, size, coating, and length.
- Thread and seating-surface inspection.
- Controlled installation equipment.
- Defined torque or torque-angle requirements where applicable.
- Tool calibration and verification.
- Prevention of cross-threading and missed fasteners.
- Traceability for safety- or performance-critical joints.
- Joint audits or other verification methods.
- Review of preload retention under the expected environment.
Torque auditing alone may not prove joint preload because friction and installation conditions influence the torque-to-preload relationship. Where preload is critical, the joint-control method should be validated.
9. Thermal-Interface Problem
Thermal-interface performance can be affected by gap variation, poor contact, surface condition, uneven compression, material degradation, contamination, or incorrect assembly.
The relevant performance characteristic may include thermal resistance, temperature distribution, contact pressure, coolant-interface integrity, or component temperature under defined operating conditions. The required metric and acceptance limit must come from the thermal design and validation plan.
Controls may include:
- Control of interface geometry.
- Surface cleanliness and condition.
- Correct thermal-interface material.
- Controlled application thickness or volume.
- Defined assembly pressure or fastener sequence.
- Protection against voids, contamination, and displacement.
- Thermal-performance verification under representative operating conditions.
A dimensional measurement can identify a geometric condition, but it does not by itself establish thermal performance.
10. Fatigue Cracking
Battery enclosures can experience repeated vibration and mechanical loading during vehicle operation. Fatigue-sensitive locations may include welds, brackets, mounting points, sharp transitions, openings, joints, and other stress concentrations.
Fatigue risk depends on the material, geometry, stress range, mean stress, joining process, surface condition, load spectrum, temperature, corrosion environment, and manufacturing variation.
Controls may include:
- Fatigue-oriented design review.
- Reduction of sharp stress concentrations.
- Appropriate material and thickness selection.
- Controlled weld and joining processes.
- Inspection of fatigue-sensitive joints.
- Representative vibration and durability validation.
- Post-test inspection for cracking and permanent deformation.
- Correlation between analysis and physical test results.
Durability loads, test duration, vibration spectrum, fixture arrangement, and crack-acceptance criteria must be defined by the applicable validation plan or customer requirement. No universal fatigue test should be implied.
Failure Prevention Should Follow the Manufacturing Process
Controls are most effective when they are placed at the stage where variation can be introduced and before the variation can affect later operations.
| Manufacturing stage | Typical risk | Useful control |
|---|---|---|
| Material preparation | Contamination, wrong material, or unsuitable condition | Material certification, identification, storage, and surface controls |
| Forming or casting | Geometry variation, porosity, or distortion | Tooling control, process monitoring, and dimensional inspection |
| Machining | Feature variation, burrs, or damaged surfaces | Tool control, in-process inspection, and dimensional verification |
| Welding | Porosity, cracking, distortion, or incomplete joint quality | Qualified process, parameter monitoring, and applicable weld inspection |
| Sealing | Gasket damage, displacement, or incorrect compression | Assembly controls, visual checks, and leak testing where specified |
| Fastening | Incorrect joint condition or loss of traceability | Controlled tools, verification, and joint records |
| Environmental validation | Ingress, corrosion, temperature, or vibration exposure | Test methods and severities defined by the applicable requirement |
| Durability validation | Fatigue, vibration, and mounting-interface effects | Representative loading, inspection, and documented acceptance criteria |
Why Measurement Quality Matters
Weld distortion, dimensional error, gasket compression, mounting-interface variation, and thermal-interface geometry can be difficult to control when the measurement system is unsuitable.
For each critical characteristic:
- Confirm that the instrument has adequate range and resolution.
- Maintain calibration or verification status as required by the quality system.
- Use suitable reference standards.
- Maintain measurement traceability where required.
- Consider measurement uncertainty when making acceptance decisions.
- Define the datum structure, sampling method, and measurement conditions.
- Record results against the applicable drawing or specification.
Measurement capability should be demonstrated for the decision being made. A calibrated instrument is not automatically suitable for every tolerance, surface, environment, or inspection method.
How to Prioritize Failure Modes
Failure modes can be prioritized by considering severity, occurrence, and detectability. The method should be consistent with the organization's design- and process-risk procedures.
Useful questions include:
- What happens if the defect reaches the next process or the customer?
- Could the failure affect electrical safety, containment, sealing, thermal performance, or structural integrity?
- Can the defect be detected at the current station?
- Is the proposed detection method capable of finding the actual failure mechanism?
- Is the cause related to design, material, process, assembly, or environment?
- Does the defect recur or show a trend?
- Does the control prevent the cause, detect the defect, or merely contain it?
- Is additional validation needed to demonstrate performance over the expected service life?
A risk score should not replace engineering judgment. Safety-related characteristics may require controls even when their estimated occurrence is low.
Practical Prevention Checklist
Identify critical enclosure characteristics and link them to drawings, specifications, and control plans.
Qualify and monitor critical joining processes.
Control material identity, cleanliness, surface preparation, and storage.
Control fixtures, datums, welding sequences, and heat input where applicable.
Inspect critical dimensions after the processes most likely to change them.
Control sealing surfaces, gasket handling, compression, and assembly sequence.
Define and perform appropriate leak or ingress testing.
Control corrosion protection and dissimilar-material interfaces.
Verify critical fasteners using a validated joint-control method.
Validate thermal interfaces under representative operating conditions.
Evaluate vibration, impact, and fatigue performance according to the applicable validation plan.
Maintain suitable measuring equipment and measurement records.
Review recurring defects and perform documented root-cause analysis.
Frequently Asked Questions
What are common EV battery enclosure failure modes?
Common categories include weld porosity, weld distortion, gasket and seal failure, water ingress, corrosion, dimensional error, impact deformation, fastener failure, thermal-interface problems, and fatigue cracking. The relevant list depends on the enclosure design, materials, joining methods, vehicle location, and intended service environment.
What causes weld porosity?
Possible causes include contamination, unsuitable welding parameters, inadequate shielding, poor joint preparation, and process instability. The applicable inspection method and acceptance limit must come from the joint specification and referenced weld-quality requirements.
How is weld distortion detected?
CMMs, optical systems, laser scanners, gauges, or other suitable methods may be used. The selected system must be capable of measuring the relevant features against the drawing tolerances and datum scheme.
How can seal failure be detected?
Leak testing may be used when required by the product specification or validation plan. The test method, pressure, duration, environment, and allowable leak rate must be defined for the enclosure. A dimensional inspection alone does not prove leak tightness.
Why is water ingress a battery-enclosure concern?
Water can enter through seals, welds, cracks, connectors, vents, drains, or incorrectly assembled interfaces. ISO 20653 addresses enclosure protection ratings for road-vehicle electrical equipment, while applicable UNECE requirements may also address protection against water ingress for rechargeable energy storage systems. (ISO 20653; UNECE Regulation No. 100 material)
Why is corrosion a battery-enclosure concern?
Moisture, road contaminants, salt, coating damage, trapped fluid, temperature cycling, and dissimilar-metal interfaces can contribute to corrosion. The required environmental test and acceptance criteria should be taken from the applicable material, coating, customer, or vehicle validation requirement.
Why is dimensional control important?
Dimensional variation can affect fit, mounting alignment, gasket compression, internal clearance, cooling interfaces, and downstream assembly. Critical dimensions should be measured using a suitable system and accepted against the applicable drawing or specification.
Technical Review Note
This article is an educational manufacturing-quality guide. It identifies common failure mechanisms and possible controls but does not establish a universal test specification.
Specific inspection methods, weld-quality classes, ingress-protection ratings, leak limits, torque values, corrosion exposures, dimensional tolerances, impact conditions, fatigue spectra, thermal limits, and sampling plans depend on the enclosure design, materials, manufacturing processes, vehicle installation, customer requirements, applicable regulations, and referenced standards.
Before using this article as a production or validation requirement, identify the governing document for each material technical requirement and place the requirement beside the relevant claim. Where no applicable mandatory requirement has been established, describe the statement as engineering guidance rather than a universal rule.
