Force and Torque Metrology
Choose and control a digital torque tester by evaluating measuring range, directionality, mechanical fixturing, sampling frequency, calibration evidence, measurement uncertainty, and intended application.
Core Principle: Understand How Accuracy Is Specified
An accuracy statement of ±0.5% of Full Scale (FS) behaves completely differently from ±0.5% of Reading. At the lower end of the tester's range, a full-scale specification can consume your entire process tolerance. Always review working ranges, loading alignment, and calibration uncertainty rather than relying solely on catalog marketing claims.

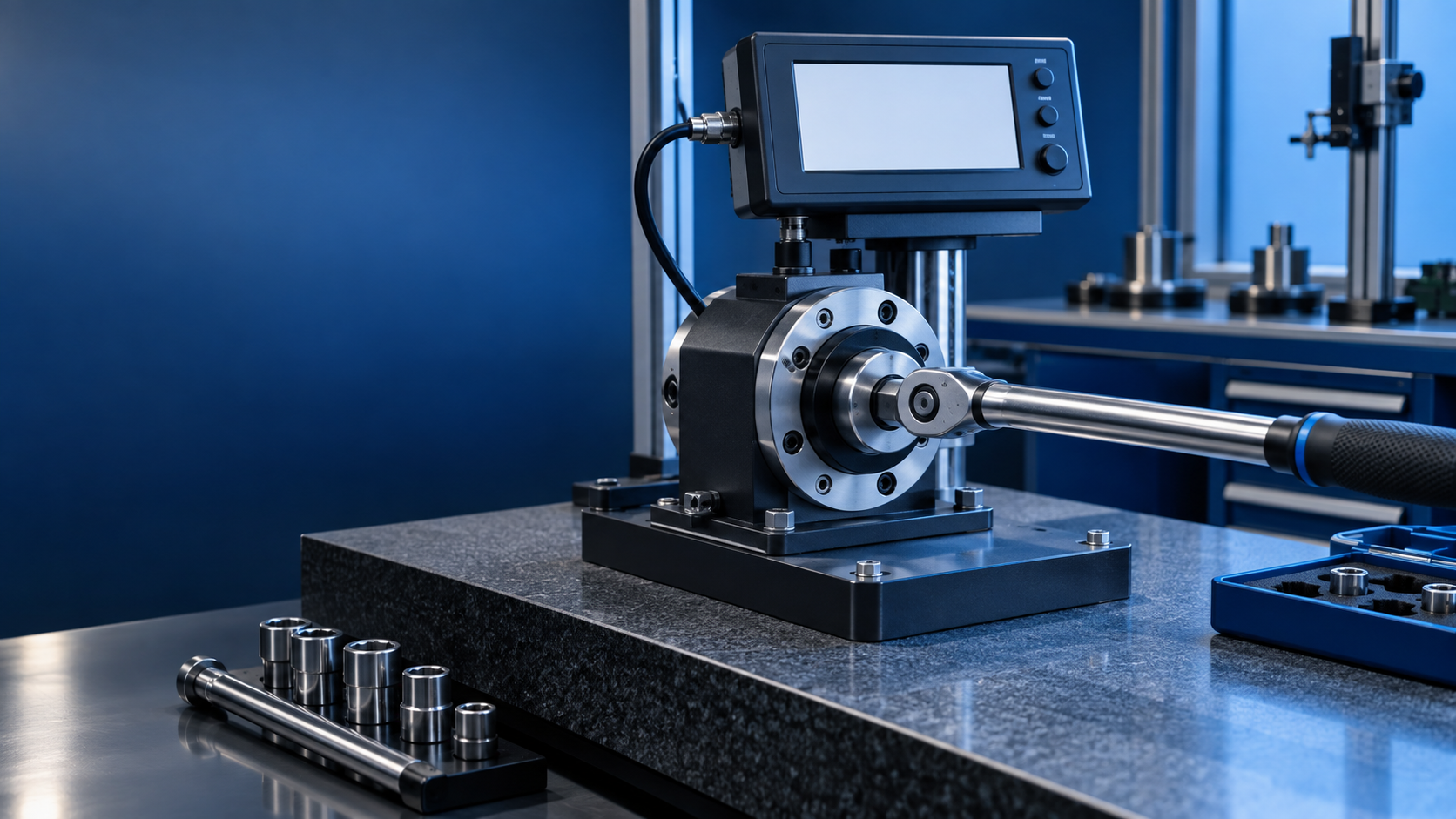

What Is a Digital Torque Tester?
A digital torque tester measures the torsional load (twisting force) applied to a tool, fastener, or component. Utilizing a strain-gauge or magnetoelastic rotary/stationary transducer, the instrument processes analog microvolt signals into digitized engineering units (N·m, cN·m, lbf·in, lbf·ft) displayed in real time.
By definition, Torque = Force × Perpendicular Distance ($\tau = F \cdot d$). The tester combines a precision transducer, a rigid mechanical reaction base, digital signal conditioning, and firmware algorithms for peak, track, and first-peak capture. Because torque measurement depends strictly on moment arm perpendicularity, rigid fixturing and coaxial alignment are vital.
Tester vs. Calibrator: Understanding the Difference
While often used interchangeably in tool cribs, these terms represent distinct metrological functions:
| Classification | Primary Purpose | Metrological Expectation |
|---|---|---|
| Torque Tester | Verification checks, daily pass/fail tool crib auditing, and production torque screening. | Monitors stability; must possess a suitable Test Uncertainty Ratio (TUR ≥ 4:1) for the tools being tested. |
| Torque Calibrator | Serves as a formal measurement reference standard to generate accredited calibration certificates. | Requires documented classification under BS 7882:2017, ISO/IEC 17025 accredited calibration, and an expanded uncertainty budget. |
Selecting the Right Torque Range
Choose an instrument that comfortably envelopes your operating limits without operating at extreme extremes:
- Operating at the Low End (<10% of Full Scale): Transducers become increasingly vulnerable to noise, non-linearity, and poor resolution at the bottom 10% of their rated capacity.
- Operating Near Peak Capacity (>90% of Full Scale): Repeatedly loading near maximum increases the risk of mechanical plastic deformation or electronic zero-point shift if accidental over-torque occurs.
- Best Practice: Select a unit where your primary target torque falls between 20% and 80% of the transducer’s full-scale rated capacity.
Worked Example: Full-Scale vs. Reading Specification
Manufacturers specify instrument accuracy either as a percentage of Full Scale (% FS) or a percentage of Reading (% of Reading). This difference is critical at lower test points:
| Test Point | Tester A: ±0.5% of Full Scale (100 N·m) | Tester B: ±0.5% of Reading (100 N·m) |
|---|---|---|
| 100 N·m (Max) | Error limit = ±0.5 N·m (0.5% relative error) | Error limit = ±0.5 N·m (0.5% relative error) |
| 50 N·m (Mid) | Error limit = ±0.5 N·m (1.0% relative error) | Error limit = ±0.25 N·m (0.5% relative error) |
| 10 N·m (Low) | Error limit = ±0.5 N·m (5.0% relative error!) | Error limit = ±0.05 N·m (0.5% relative error) |
Note: Actual metrological decisions require evaluating the complete expanded uncertainty budget, not just the manufacturer's stated nominal accuracy.
Alignment, Fixturing, and Side-Loading Errors
Torque transducers are designed to measure pure torsional moments along their central rotational axis. Poor fixturing introduces parasitic forces:
- Side Loading / Bending Moments: Applying hand force at an angle or pushing unevenly against a torque wrench lever creates bending moments across the strain gauge bridge, generating false readings.
- Reaction Load Rigidity: Ensure reaction posts and mechanical drive loaders are rigidly anchored to an immovable benchtop to prevent deflection during torque build-up.
Calibration & Technical Standards
A calibration standard must establish a documented, unbroken chain of traceability to the International System of Units (SI). Written standards define the procedure—they do not replace the physical reference mass and lever arm:
- ISO 6789-1:2017: Assembly tools for screws and nuts — Hand torque tools — Part 1: Requirements and methods for design and manufacturing conformance testing.
- ISO 6789-2:2017: Hand torque tools — Part 2: Requirements for calibration and determination of measurement uncertainty.
- BS 7882:2017: Method for calibration and classification of torque measuring devices. Governs the grading (Class 0.05 through Class 5) of the actual testers and transducers.
Pre-Purchase & Commissioning Selection Checklist
- ☑ Operating Range: Transducer covers all targeted torque points between 20% and 80% capacity.
- ☑ Accuracy Definition: Verified whether accuracy is expressed as % of Reading or % of Full Scale.
- ☑ Directionality: Transducer calibrated in both Clockwise (CW) and Counter-Clockwise (CCW) directions if bi-directional tools are used.
- ☑ Sampling Rate: High sampling frequency (≥1000 Hz or higher) for digital/click wrenches to capture instant breakaway peak torque.
- ☑ Traceable Evidence: Accredited calibration certificate supplied with stated expanded measurement uncertainty ($k=2$).
- ☑ Mechanical Fixturing: Rigid reaction arm attachments to prevent side loading and parasitic bending.
Reviewing Calibration Laboratories (NABL / ISO/IEC 17025)
A laboratory logo or marketing badge does not guarantee accreditation for your specific range. Before sending equipment for calibration, verify:
- The laboratory’s current accredited Scope of Accreditation explicitly lists torque measuring devices under BS 7882 or ISO 6789.
- The calibrated range covers both clockwise and counter-clockwise directions across your specific operational bounds.
- Their Calibration and Measurement Capability (CMC) is sufficiently small to support your instrument's classification.
Frequently Asked Questions (FAQ)
Q1: Which ISO standard governs hand torque wrench calibration?
ISO 6789-2:2017 is the international standard governing the formal calibration procedure and determination of expanded measurement uncertainty for manual torque tools.
Q2: Is BS 7882:2017 the current standard for torque testers?
Yes, BS 7882:2017 remains the primary international reference standard for calibrating and classifying the electronic torque measuring devices and transducers themselves.
Q3: Does having a calibration certificate mean the torque tester passed?
No. A calibration certificate provides measured values, deviations, and measurement uncertainty. A pass/fail conformance statement requires a defined specification and a formally agreed decision rule (accounting for guardbanding and uncertainty).
Q4: What should be done if a torque tester experiences an overload?
Any instrument subjected to an overload event (typically exceeding 110% to 120% of rated capacity) must be removed from service immediately for zero-point check, linearity verification, and formal recalibration before returning to active duty.
Primary Metrological References
- ISO 6789-2:2017: Hand torque tool calibration and measurement uncertainty
- BSI: BS 7882:2017, Calibration and classification of torque measuring devices
- JCGM VIM: International Vocabulary of Metrology (Metrological Traceability)
- NABL: Accreditation Scope and CMC Guidance
