Calibration Fundamentals
Understand the practical difference between a tester, a calibrator, a measurement standard, and a calibration activity. Use a simple, structured decision framework to choose the right equipment and role for your quality assurance workflow.
The Core Distinction: Product Check vs. Tool Check
Testers evaluate products, materials, and components. Calibrators evaluate the measuring instruments themselves. A tester yields a measurement result you compare against a part specification; a calibrator provides a traceable reference standard to verify whether the tester's readings are trustworthy.

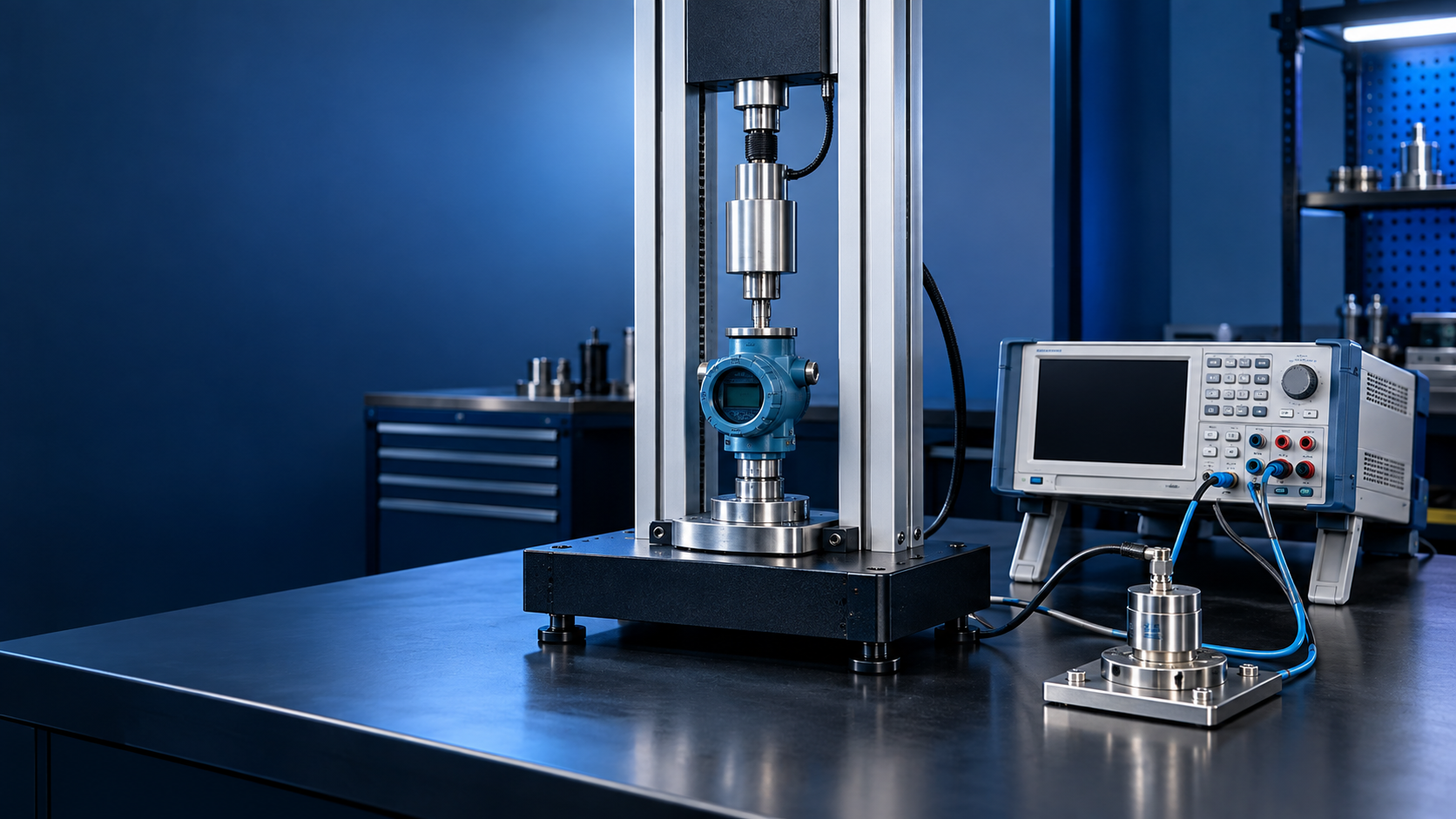

Tester vs. Calibrator: Side-by-Side Comparison
A tester and a calibrator may look similar in the laboratory or tool crib, but their roles in quality assurance are fundamentally different:
| Characteristic | Tester | Calibrator |
|---|---|---|
| Primary Target | Assesses a product, raw material, or production process. | Checks the accuracy and response of another measuring instrument. |
| Output Provided | Delivers an actionable measurement value (e.g., 62 HRC, 10.2 bar). | Provides a certified, traceable reference value with stated uncertainty. |
| Decision Supported | Determines whether the workpiece meets drawing tolerances. | Determines whether the measuring tool is fit for service. |
| Conformance Role | Does not guarantee quality on its own—requires correct setup and calibrated status. | Does not pass/fail tools automatically—requires explicit tolerance limits and decision rules. |
What Counts as a Tester?
The term "tester" is broad and describes instruments designed to measure a physical property or test a component under load:
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness systems.
- Force & Torque Systems: Torque analyzers, load frames, and tensile/compression testing machines.
- Surface & Dimensional Tools: Stylus surface roughness testers, profile projectors, and air gauges.
- Electrical & Environmental: Insulation testers (megohmmeters), leak testers, and pressure gauges.
The label on the nameplate matters less than how the device is used. If a digital gauge reading is used to release manufactured parts, it is functioning as a tester.
What Counts as a Calibrator?
Under the International Vocabulary of Metrology (JCGM VIM 3, clause 5.12), a calibrator is a measurement standard used to establish or verify the accuracy of measuring equipment. A calibrator may be a dedicated multi-function generator or a passive physical reference standard:
- Multifunction electrical calibrators (voltage, current, resistance sources)
- Pneumatic/hydraulic deadweight testers and automated pressure controllers
- Temperature dry-wells, micro-baths, and blackbody furnaces
- Certified reference materials (calibrated hardness test blocks, gauge blocks, optical stage micrometers)
Calibration, Verification, and Adjustment: Three Different Actions
These three metrological terms are frequently confused on shop floors and quality audits:
Establishes the quantitative relationship between the reference standard and the unit under test (UUT), and determines measurement uncertainty. Calibration alone does not mean the instrument passed or was adjusted.
Provides objective evidence that an instrument fulfills specified tolerance requirements. Compares calibration data against defined maximum permissible errors (MPE).
The physical, mechanical, or digital act of bringing an out-of-spec tool into acceptable performance. Adjustment must be bracketed by documented As-Found and As-Left calibration data.
Concrete Workshop Examples
Example 1: Hardness Testing
A Rockwell hardness tester indents a heat-treated gear.
• Product question: Does this gear meet the 58–62 HRC specification?
• Measurement system question: Did the tester read within ±0.5 HRC when tested on a certified standard block before the shift?
Example 2: Torque Verification
A digital torque analyzer checks a line assembly screwdriver.
• Product question: Is the screwdriver delivering the required 4.5 N·m fastener torque?
• Measurement system question: Has the digital torque analyzer been calibrated against an ISO/IEC 17025 accredited torque calibrator with traceable uncertainty?
How to Choose: The 3-Question Decision Framework
- What are you evaluating? Are you evaluating a manufactured part (use a tester) or verifying an instrument (use a calibrator)?
- What is your reference standard? Is your measurement backed by an unbroken, documented chain of traceability to the SI?
- What decision are you making? Are you recording product quality data (measurement), checking against limits (verification), documenting errors (calibration), or correcting hardware offset (adjustment)?
What Evidence Must You Review?
- Measuring Range: Does the device cover all relevant operating points (ideally between 20% and 80% capacity)?
- Test Uncertainty Ratio (TUR): Is the reference calibrator at least 4 times more accurate than the tool being checked?
- Measurement Uncertainty: Is stated expanded uncertainty ($k=2$) accounted for when making pass/fail conformance decisions?
- As-Found vs. As-Left Records: If the instrument was adjusted, does the certificate show data from both before and after adjustment?
- Traceability Chain: Does the certificate reference national primary standards (e.g., NPLI, NIST, BIPM)?
10 Common Metrology Pitfalls to Avoid
- ⚠️ Assuming that a high-resolution digital display equals high measurement accuracy.
- ⚠️ Calling zeroing or mechanical adjustment "calibration."
- ⚠️ Believing that high repeatability proves zero systematic error.
- ⚠️ Selecting a reference solely by maximum capacity rather than low-end performance.
- ⚠️ Ignoring measurement uncertainty when tolerances are tight.
- ⚠️ Trusting a calibration label on a tool without auditing the full certificate.
- ⚠️ Assuming that having a calibration certificate automatically implies a "pass."
- ⚠️ Applying a single calibration interval (e.g., 12 months) without considering usage and risk.
- ⚠️ Assuming a calibrator maintains uniform uncertainty across its entire range.
- ⚠️ Conflating a product inspection check with a measurement system calibration check.
Frequently Asked Questions (FAQ)
Q1: Is a tester the same as a calibrator?
No. Testers inspect products, materials, or components against specifications. Calibrators are reference standards used to check and maintain the accuracy of measuring instruments.
Q2: Can a tester itself be calibrated?
Yes. All testers must undergo periodic calibration against higher-level reference standards to ensure their sensor and electronics drift remain within acceptable limits.
Q3: Does calibration mean the instrument passed?
Not automatically. Calibration determines the relationship between standard and instrument, and reports the associated uncertainty. Conformance (pass/fail) requires applying a decision rule against drawing or product tolerances.
Q4: Is calibration the same as zeroing or adjustment?
No. Calibration measures and documents error without altering the device. Adjustment physically or digitally alters the instrument's settings to bring it back into specification.
Q5: How often should an instrument be calibrated?
Calibration intervals must be determined based on instrument stability, frequency of use, environmental severity, manufacturer advice, and the operational risk of a measurement error.
Primary Metrological References
- JCGM VIM 3, clause 2.39: Calibration Definition
- JCGM VIM 3, clause 5.12: Calibrator (Measurement Standard)
