Using Metrology Data to Improve Manufacturing Decisions
A dimensional inspection result can look deceptively simple. A drawing defines a requirement, an instrument produces a value, and someone compares the two.
That comparison answers an important question: Does the result support a statement of conformity under the applicable decision rule?
A series of results can answer much more. Is the process stable? Is the dimension drifting? Did the change begin after a tool replacement, machine adjustment, material change, or maintenance event? Or did something change in the measurement system?
Metrology data is most useful when it is treated as evidence about both the product and the systems used to manufacture and inspect it.
Why Measurement Data Matters
Suppose a dimension remains within tolerance but moves steadily toward a specification limit. Every inspected part may still conform, yet the sequence suggests that something has changed.
The cause could involve tool wear, temperature, fixture behavior, machine condition, material, operator technique, or the measurement method. The trend gives engineers a reason to investigate. It does not prove the cause.
This distinction matters because specification limits and statistical control limits answer different questions. Specification limits define product requirements. Statistical monitoring compares current process behavior with established behavior to help teams detect changes in location, spread, or pattern.
The NIST/SEMATECH e-Handbook of Statistical Methods describes control charts as tools for comparing current and historical process performance and identifying changes that warrant investigation. The appropriate method depends on the process, data type, sampling plan, and underlying assumptions.
One Result and a Sequence Answer Different Questions
A single result records what one application of a measurement procedure produced. A sequence can reveal direction, timing, variation, and changes in behavior.
Consider this series:
20.01 mm → 20.02 mm → 20.02 mm → 20.03 mm → 20.03 mm → 20.04 mm
Assume every value is within specification. There may be no immediate nonconformity, but the upward movement still deserves attention.
An investigation might ask:
- Is the movement statistically meaningful?
- Was the measurement system stable throughout the period?
- Did the machine, tool, material, setup, operator, procedure, or environment change?
- Does the same pattern appear on another machine or when using another approved measurement method?
- Does the pattern recur after similar production events?
- Can the suspected cause be reproduced or confirmed with independent evidence?
This is the difference between checking conformance and studying process behavior. Conformance asks whether a result satisfies a requirement under an applicable decision rule. Process analysis asks what a body of results reveals about the behavior of the process.
Calibration Is Essential, but It Is Not the Whole Measurement System
A current calibration certificate is important evidence. It does not establish that every measurement made with the instrument is suitable for every intended decision.
Calibration establishes a relationship between indicated values and reference values, with associated uncertainties, under stated conditions. Actual conditions of use may differ. The workpiece, fixture, operator, environment, procedure, sampling strategy, software, resolution, and feature definition can all influence a result.
The JCGM International Vocabulary of Metrology states that a measurement result generally includes a measured quantity value and its associated measurement uncertainty. It also defines calibration, uncertainty, repeatability, reproducibility, and metrological traceability as separate concepts.
The practical question is not just, “Has this instrument been calibrated?” It is also, “Is this measurement process suitable for this task and decision?”
Answering that question may require:
- A defined measurement procedure
- Suitable environmental controls
- Appropriate fixtures and sampling methods
- Repeatability and reproducibility studies
- An evaluation of measurement uncertainty
- Equipment verification or intermediate checks
- Documented acceptance criteria and decision rules
- Records connecting results to the equipment and conditions of use
The necessary controls depend on the application, risk, contract, customer requirements, regulations, and standards adopted by the organization.
Traceability Applies to Measurement Results
Metrological traceability is not simply a label attached to an instrument. Under the JCGM vocabulary, it is a property of a measurement result. The result must be related to a reference through a documented, unbroken chain of calibrations, with each calibration contributing to measurement uncertainty.
Traceability supports comparability and confidence. On its own, it does not establish that a measurement procedure has adequate resolution, sufficiently low uncertainty, or enough control for a particular acceptance decision.
A traceable result can still be poorly suited to its intended use. Its uncertainty may be too large relative to the available decision margin, or its operating conditions may not be adequately controlled.
Traceability is often necessary, but it must be considered with the rest of the measurement evidence.
Separate Product Change From Measurement-System Change
A change in measured values does not necessarily prove that the product changed. The measurement process can change too.
Possible measurement-system influences include:
- Instrument condition
- Probe or sensor behavior
- Fixture condition and alignment
- Operator technique
- Measurement location or orientation
- Measurement procedure
- Software configuration
- Environmental conditions
- Instrument resolution
- Workpiece cleanliness or temperature
- Data-processing and rounding rules
Product variation and measurement variation can occur at the same time. An observed trend should trigger an investigation, not an immediate conclusion about the machine, tool, or product.
One practical method is to compare three histories:
- Product history
- What happened to the component or characteristic?
- Process history
- What happened during manufacturing?
- Measurement history
- What happened during inspection?
Shared timestamps and identifiers make these histories easier to compare without treating correlation as proof of causation.
Examine Measurement Variation Through Repeatability and Reproducibility
Repeatability concerns measurement precision under repeatability conditions. Reproducibility concerns precision under reproducibility conditions, where relevant conditions are intentionally changed.
These terms should be connected to clearly stated conditions rather than used as vague claims that an instrument “repeats” or “reproduces.”
Repeated measurements of one component may be used to study variation while the operator, instrument, procedure, measurement location, and environment remain controlled. A broader study might vary operators, days, equipment, or locations to determine how those factors affect the results.
Useful questions include:
- How much do results vary under the same stated conditions?
- Does changing the operator materially affect the result?
- Does measurement location or orientation matter?
- Do approved procedures agree closely enough for their intended use?
- Does measurement performance change over time?
- Are temperature, vibration, humidity, cleanliness, or workpiece stabilization relevant?
- Is the instrument’s resolution suitable?
- Is the resulting uncertainty acceptable for the intended decision?
The study should match the measurement task. A generic repeatability and reproducibility exercise cannot replace a clear definition of the measurand, procedure, and actual conditions of use.
Measurement Uncertainty Affects Acceptance Decisions
Every measurement result has uncertainty. A displayed value alone may not provide complete engineering evidence when the associated uncertainty could affect the decision.
This matters most near a specification limit. When uncertainty is small compared with the distance between the result and the limit, the decision may be relatively clear. When uncertainty is large relative to that distance, the risk of incorrect acceptance or rejection increases.
A decision rule explains how measurement uncertainty is considered when declaring conformity with a specified requirement. ISO 14253-1:2017 establishes rules for proving conformity or nonconformity with tolerances in the geometrical product specifications system.
Organizations should not assume that one rule applies everywhere. The applicable rule may come from a drawing, contract, customer requirement, regulation, consensus standard, or documented agreement. If no rule is specified, the organization should define and document one that fits the application and risk.
No single uncertainty ratio, guard band, or acceptance rule fits every measurement. These choices must follow the applicable technical, quality, regulatory, and contractual requirements.
Connect Measurements With Production Context
A result becomes easier to interpret when it is linked to the conditions under which the part was made and inspected.
Useful contextual fields may include:
- Part, feature, and drawing revision
- Machine and production line
- Tool identity and tool-life status
- Fixture and setup
- Operator and shift
- Material batch
- Production date and time
- Environmental conditions
- Inspection procedure
- Measurement equipment and software version
- Calibration and verification status
- Maintenance activity
- Process adjustments
- Nonconformance and rework records
Not every application needs every field. The aim is to retain enough context to answer the engineering questions associated with the characteristic.
Suppose an upward dimensional trend begins shortly after a cutting tool is replaced. The timing creates a testable hypothesis. It does not prove that the replacement caused the change.
Investigators can compare the event with earlier tool changes, other machines, material batches, setup records, environmental data, and measurement-system checks. Corrective action should follow verified evidence rather than timing alone.
A useful investigation path is:
Measurement → Pattern → Related event → Cause hypothesis → Verification → Action → Effectiveness check

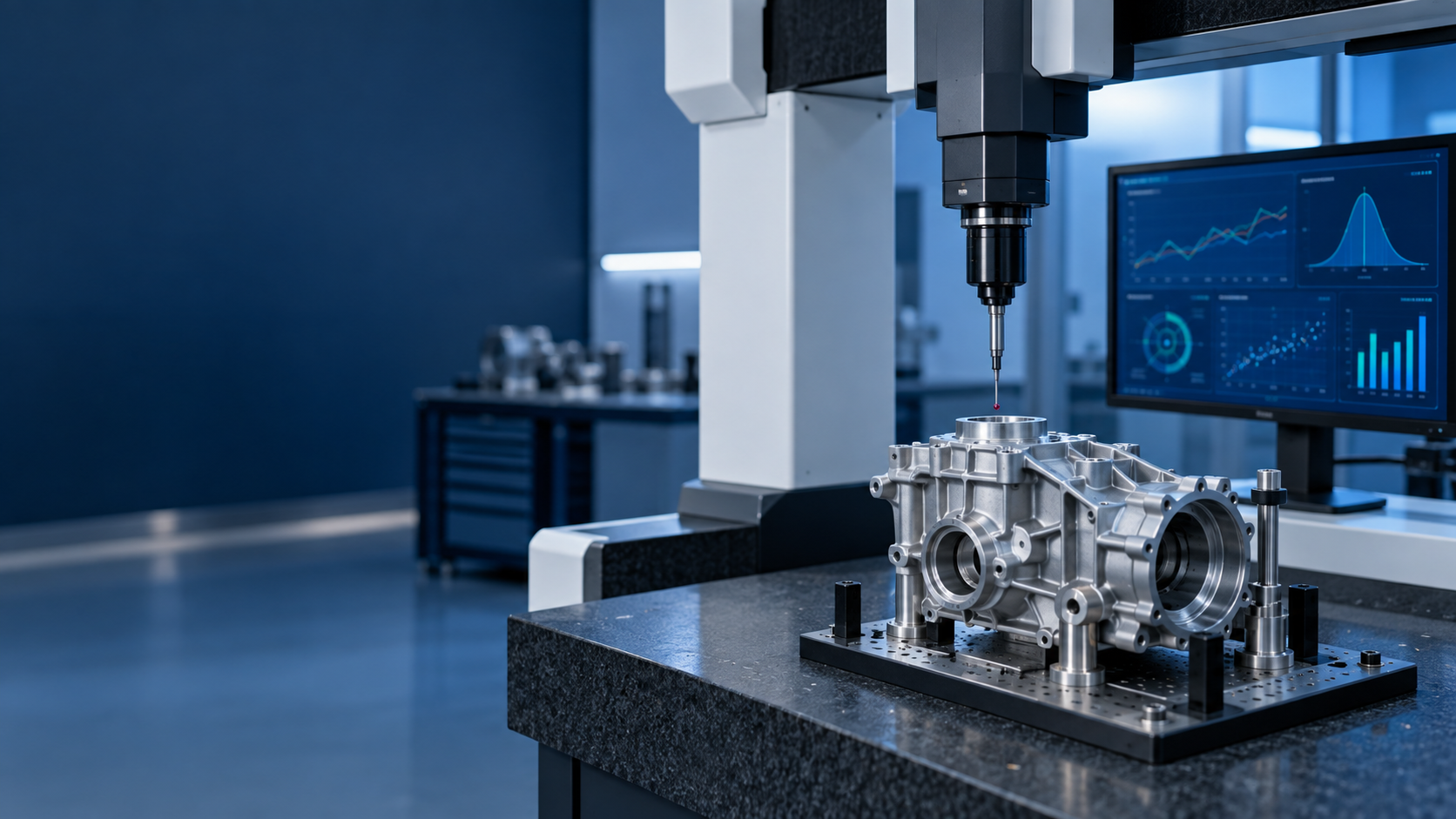

Applying the Approach to CMM Data
Coordinate measuring machines can produce large volumes of dimensional and geometric data. This information can support conformance decisions while also revealing relationships among features.
If several features move together, engineers can ask whether the pattern is consistent with fixture movement, alignment change, tool wear, thermal effects, or part distortion. They should also examine the CMM measurement process, including datum establishment, probing configuration, fixturing, software, environment, measurement strategy, and workpiece condition.
CMM performance verification and evaluation are addressed by applicable parts of the ISO 10360 series and ASME B89 standards. The relevant document depends on the machine type, jurisdiction, customer requirements, contract, and quality system.
A CMM’s sophistication does not remove the need to define the measurand, validate the measurement strategy, evaluate relevant uncertainty contributions, and control operating conditions.
Treat Calibration and Verification History as Process Information
Calibration, verification, maintenance, and intermediate-check records can reveal patterns in measurement-system performance.
When an instrument repeatedly changes in the same direction between calibrations, useful questions include:
- How large is the observed change?
- Is its direction consistent?
- Does it occur under particular operating conditions?
- Did maintenance or repair precede it?
- Do intermediate checks indicate when it began?
- Do comparable instruments behave similarly?
- Could earlier measurements or product decisions have been affected?
A calibration result may not establish exactly when performance changed or whether earlier decisions were affected. A retrospective review should consider the calibration findings, uncertainty, intermediate checks, use history, product risk, and applicable quality-system procedures.
This evidence can support decisions about maintenance intervals, verification frequency, equipment suitability, measurement assurance, and reviews of earlier results.
Build a Measurement-to-Decision Pipeline
Collecting more data does not automatically produce better decisions. Data becomes useful when it remains connected to a defined question and retains the context needed for interpretation.
A practical flow might be:
Measurement equipment → Controlled data capture → Measurement database → Trend or SPC analysis → Production records → Investigation → Action → Verification
Statistical process control can support manufacturing monitoring, but the chart type, sampling plan, analytical method, and interpretation must fit the process and data.
Before creating dashboards or adding fields, define what the system should help engineers determine:
- Is the characteristic stable?
- Is it shifting or trending?
- Is the pattern associated with a machine, tool, material batch, setup, or shift?
- Does it recur after a particular event?
- Do approved measurement methods agree?
- Was the measurement system stable during the period?
- Is the observed change large enough to affect product function or the acceptance decision?
The depth of analysis should reflect the risk. A safety-critical characteristic may justify formal decision rules, frequent checks, and detailed monitoring. A low-risk characteristic may need less intensive control.
What Metrology Data Can Tell You
Used carefully, metrology data supports five related activities:
- Conformance: Does the result support a statement of conformity or nonconformity under the applicable specification and decision rule?
- Measurement quality: Is the measurement process controlled and suitable for the intended decision?
- Process monitoring: Does a sequence indicate stable behavior, a shift, a trend, or unusual variation?
- Cause investigation: Which production or measurement conditions could explain the observed pattern, and what evidence would confirm or reject each hypothesis?
- Prevention: Can the condition be detected earlier, controlled more effectively, or prevented from recurring?
These questions may require different data, methods, and levels of evidence.
A Practical Review for Engineering and Quality Teams
Start with characteristics that have the greatest effect on safety, function, interchangeability, or customer requirements. Pay close attention to results that frequently approach specification limits and measurement systems whose uncertainty or stability could materially affect decisions.
For each selected characteristic, confirm that the organization has defined:
- The measurand and measurement procedure
- The applicable specification and decision rule
- The equipment and conditions of use
- Traceability and record requirements
- Relevant uncertainty information
- Monitoring and verification methods
- Production data needed for investigation
- Responsibilities for review, action, and effectiveness checks
Next, examine meaningful trends and recurring calibration or verification findings. Compare them with production events, but do not assign causes until the evidence supports doing so.
From Measurement to Process Understanding
Manufacturing creates the product. Measurement creates evidence about it.
One result can support a conformance decision. A sequence can show that behavior is changing. A sequence linked to production and measurement histories can help engineers determine when the change began and what may have caused it.
The relationship is straightforward:
Measurement → Information → Investigation → Process understanding → Action
Good metrology is not simply the production of numbers. It produces measurement results that are traceable where required, accompanied by appropriate uncertainty information, obtained under controlled conditions, and suitable for the decisions they support.
Technical Basis and Scope
This article uses terminology from the JCGM International Vocabulary of Metrology. General principles for evaluating and expressing measurement uncertainty are addressed by the JCGM Guide to the Expression of Uncertainty in Measurement. The discussion of conformity decisions refers to ISO 14253-1:2017. Process-monitoring principles draw on the NIST/SEMATECH e-Handbook of Statistical Methods and related NIST guidance.
The recommendation to connect product, process, and measurement histories is engineering guidance rather than a universal requirement. Regulations, contracts, drawings, customer specifications, and the organization’s quality system take precedence.
