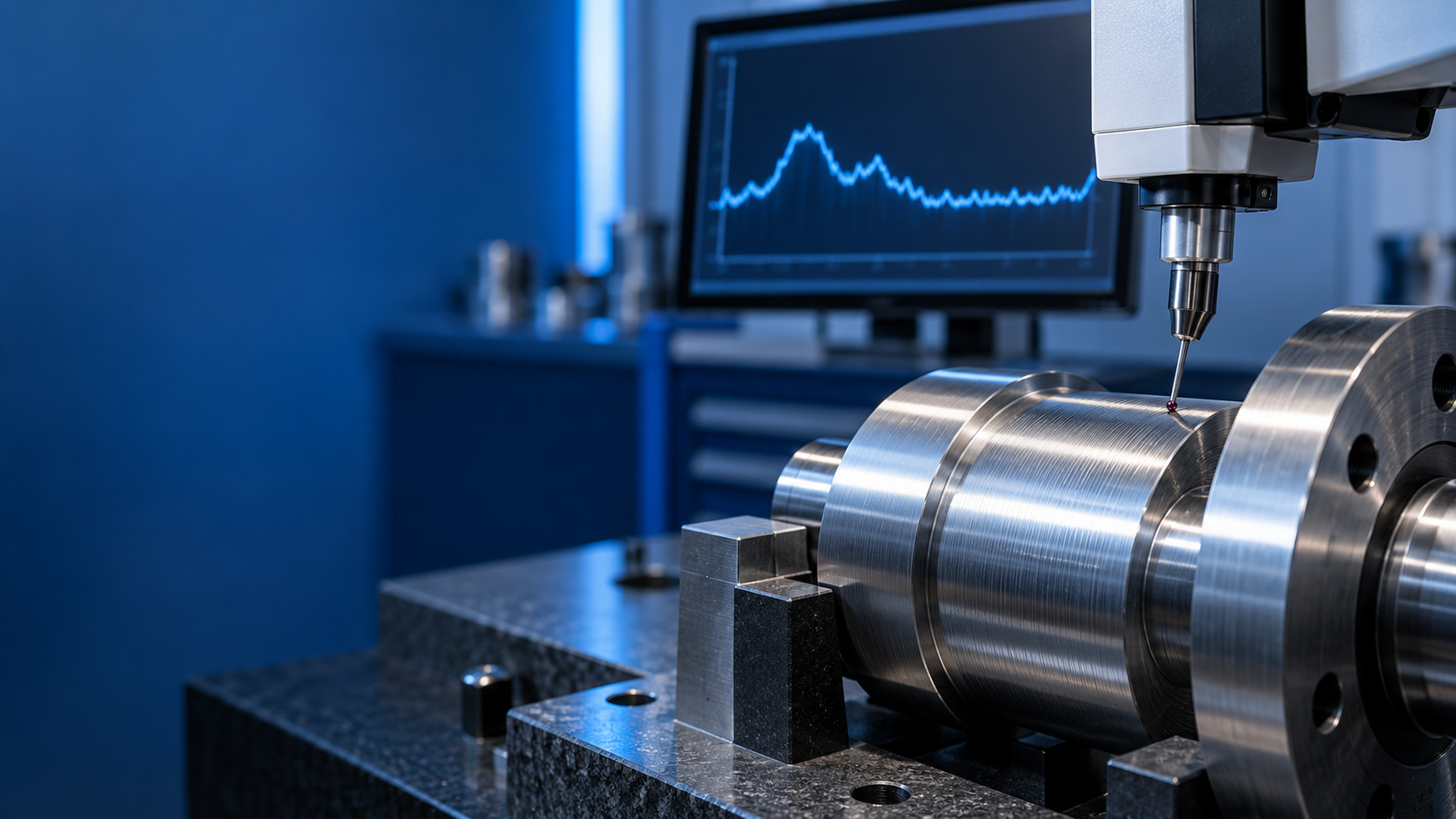

Surface Roughness Measurement: Setup, Filtering, Direction & Evaluating Ra, Rq, and Rz
A digital surface roughness tester displaying three decimal places offers a deceptive sense of certainty. In manufacturing metrology, high display resolution is not accuracy. Two skilled quality inspectors can inspect the exact same ground shaft with calibrated instruments and report conflicting numbers—with neither gauge malfunctioning. The discrepancy almost always boils down to measurement physics: mismatched cutoff filters (λc), unaligned lay directions, wrong stylus tip radii, or confusing arithmetic average (Ra) with peak-to-valley height (Rz).
Surface texture is a multi-wavelength spectrum combining fine micro-roughness, periodic waviness, and gross geometric form errors. Quoting “Ra 0.8 μm” without stating the evaluation length, filter standard, and traverse vector is as incomplete as quoting a tolerance without units. Under the international standard ISO 21920:2021, repeatable surface evaluation requires a disciplined, verified inspection workflow.
1. Why Roughness Numbers Mean Nothing Without Context
A single numerical parameter cannot describe a three-dimensional surface topography. Machining processes—such as turning, cylindrical grinding, EDM, and reaming—leave distinct spatial footprints:
- Did I measure the functionally critical parameter? (e.g., Ra measures average amplitude, but Rz controls fluid sealing and bearing fatigue life).
- Were the digital filter cutoff and sampling lengths correctly matched? (Altering the Gaussian cutoff changes the calculated Ra on identical metal).
- Was the stylus traversed perpendicular to the primary machining lay? (Traversing along a grinding groove reports artificially polished readings).
2. Ra, Rq, and Rz: What They Actually Measure
Selecting the wrong parameter invites catastrophic field failures. Two surfaces with radically different microstructures can generate identical Ra values:
| Roughness Parameter | Mathematical Formulation | Metrological Strength | Critical Functional Limitation |
|---|---|---|---|
| Ra (Arithmetical Mean Deviation) | Ra = (1/ln) ∫ |Z(x)| dx across evaluation length ln. |
Universally recognized; ideal for monitoring general machining process stability. | Completely insensitive to profile shape. A surface with sharp peaks produces the exact same Ra as one with deep lubricant valleys. |
| Rq (Root Mean Square Deviation) | Rq = √[ (1/ln) ∫ Z²(x) dx ]. |
Squares amplitude deviations, giving higher statistical weight to large peaks and deep troughs. | Rarely specified on mechanical drawings; primarily used in optical mirror and semiconductor polishing. |
| Rz (Maximum Height of Profile) | Sum of the height of the largest profile peak and depth of the largest valley within a sampling length. | Directly captures extreme peak-to-valley extremes; essential for hydraulic O-ring seals, gasket mating, and press fits. | Sensitive to stray scratches, dust specks, or localized burrs; requires multiple sampling lengths to ensure repeatability. |
Ra = 0.4 μm can pass drawing inspection yet leak oil under pressure if isolated honing torn-grooves create an excessive Rz > 4.0 μm. Always check whether drawing revisions mandate Rz, Rmax, or modern ISO 21920 material ratio parameters (Rmr, Rpk, Rvk).
3. The Physics of Filtering: Cutoff (λc) and Evaluation Length
A raw stylus tracing records total profile height (P-profile). To isolate micro-roughness (R-profile) from long-wave component waviness (W-profile) and gross geometric tilt, instruments pass the raw signal through a digital phase-correct Gaussian filter (ISO 16610-21 / ISO 21920-3:2021).
The cutoff wavelength (λc) acts as the electrical sieve: wavelengths shorter than λc belong to roughness; longer wavelengths are filtered out as waviness. If an operator switches a tester from a default 0.8 mm cutoff down to 0.25 mm, the calculated Ra reading will artificially drop by 30% to 50% because longer micro-roughness peaks are discarded as waviness!
| Expected Ra Range (μm) | ISO Cutoff Wavelength (λc) | Sampling Length (lr) | Standard Evaluation Length (ln = 5 × lr) |
|---|---|---|---|
| 0.006 < Ra ≤ 0.02 μm | 0.08 mm | 0.08 mm | 0.40 mm |
| 0.02 < Ra ≤ 0.10 μm | 0.25 mm | 0.25 mm | 1.25 mm |
| 0.10 < Ra ≤ 2.00 μm (Standard Machining) | 0.80 mm | 0.80 mm | 4.00 mm (Total Traverse ≈ 4.8 mm) |
| 2.00 < Ra ≤ 10.0 μm | 2.50 mm | 2.50 mm | 12.50 mm |
| 10.0 < Ra ≤ 80.0 μm (Rough Cast/Forged) | 8.00 mm | 8.00 mm | 40.00 mm |
4. Why Measurement Direction Governs the Entire Result
Single-point cutting tools, milling cutters, and grinding wheels generate directional surface lay patterns. Under ISO 21920, the standardized rule is absolute:
Traversing along the lay (parallel to machining grooves) causes the diamond stylus to glide along a single valley or peak plateau, reporting an artificially smooth value. Traversing at 90° forces the stylus to climb over every crest and plunge into every trough, capturing the true functional micro-geometry.
5. Contact Stylus vs. Non-Contact Optical Profilometry
Modern quality inspection rooms utilize both diamond-tipped contact profilometers and 3D optical non-contact profilers:
| Operating Attribute | Contact Stylus Profilometer (ISO 12179:2026) | Non-Contact Optical Profilometer (ISO 25178) |
|---|---|---|
| Transduction Physics | Diamond stylus (typically 2 μm or 5 μm tip radius, 90° or 60° cone angle) physically tracking profile with 0.75 mN static force. | Coherence scanning interferometry (CSI), confocal microscopy, or focus variation optical scanning. |
| Primary Advantages | Universal shopfloor standard; unaffected by surface color, transparency, or reflectivity; skidded models offer extreme portability. | 100% non-destructive; zero stylus scratch risk; acquires millions of data points across a 3D areal field (Sa, Sz, Sq) in seconds. |
| Key Limitations | Stylus tip radius mechanically filters out ultra-narrow valley fissures (<2 μm); soft copper, gold, or polymers can be scratched by stylus force. | Struggles with steep slope angles (>70°); highly reflective mirrors or transparent oily films cause optical dispersion artifacts. |
6. Systematic 8-Step Inspection Workflow
Follow this standardized engineering protocol to eliminate operator-induced measurement error:
✓ Production Roughness Inspection Checklist
- 1. Drawing & Standard Review: Confirm target parameter (Ra vs Rz), numerical tolerance, cutoff requirement, and applicable standard revision (ISO 21920 / ISO 4287).
- 2. Non-Destructive Cleaning: Clean the measurement zone with reagent-grade isopropyl alcohol and lint-free wipes. Never use abrasive pads or scraping tools.
- 3. Stylus Tip Verification: Inspect the diamond pickup under an optical loupe. Confirm that the diamond cone is unchipped, centered, and free from compacted aluminum swarf.
- 4. Lock Calibration Parameters: Ensure filter type (Gaussian), cutoff wavelength (λc = 0.8 mm), and evaluation length (ln = 5 × λc) are formally locked in tester firmware.
- 5. Mechanical Rigidity & Leveling: For benchtop setups, align the drive unit parallel to the surface to prevent pickup bottoming-out or range overtravel.
- 6. Perpendicular Lay Alignment: Visually inspect the surface lay pattern and orient the drive unit traverse vector at exactly 90° across machining ridges.
- 7. Multi-Point Spatial Sampling: Execute at least 3 to 5 separate measurement traverses across different designated zones. Never average out an out-of-spec reading without investigation.
- 8. Comprehensive Record Archival: Log part ID, inspector name, stylus radius, cutoff filter, individual point readings, and final conformity verdict.
7. Troubleshooting Inconsistent Roughness Readings
When roughness readings disagree with historical benchmarks, isolate the mechanical cause using this diagnostic matrix:
| Observed Measurement Defect | Primary Physical Root Cause | Corrective Engineering Action |
|---|---|---|
| Readings fluctuate violently when rotating part | Traverse vector is drifting relative to directional lay angle. | Use an angle-locating V-block fixture; ensure strictly perpendicular 90° traverse orientation. |
| Two operators get conflicting Ra on same part | One operator changed the filter cutoff (λc) or traversed in a different zone. | Standardize SOP: mandate identical cutoff settings, evaluation lengths, and marked inspection zones. |
| Sudden spike in Rz reading with stable Ra | Stylus encountered a localized scratch, burr, or loose airborne dust particle. | Inspect surface under a microscope; clean thoroughly; verify whether scratch is an isolated handling defect. |
| Tester indicates lower roughness than reality | Diamond stylus tip is chipped, worn, or packed with soft metal pickup. | Perform reference master verification on an NABL-certified calibration specimen; replace worn pickup. |
| High waviness and periodic sine wave artifacts | External floor vibration or air conditioning airflow hitting the unshielded drive unit. | Relocate tester to an anti-vibration granite table; install an acoustic draft enclosure. |
8. Calibration & Traceability under ISO 12179:2026 & NABL
Under ISO 12179:2026 (Calibration and adjustment of contact stylus instruments), high display resolution must be anchored to traceable physical artifacts. Multitek Calibration Pvt. Ltd. (NABL Accredited CC-4462) certifies surface roughness instrumentation using an unbroken metrological chain:
- Precision Roughness Calibration Standards: Verification utilizes NABL/NIST-traceable glass or nickel reference specimens featuring precision ground triangular grooves, geometric square waves, or calibrated irregular ground profiles (e.g., nominal Ra = 0.5 μm, 1.5 μm, 3.0 μm).
- Stylus Condition Evaluation: Testing across calibrated razor-edge artifacts verifies the diamond tip radius ($r_{\text{tip}} = 2\ \mu\text{m} \pm 0.5\ \mu\text{m}$) and confirms the absence of asymmetric wear flats.
- Accreditation Scope Verification (NABL 120): Under Indian laboratory guidelines (NABL 120 Group Classification), verify that the calibration provider holds specific accredited scope for surface texture, complete with documented Calibration and Measurement Capability (CMC) uncertainty values.
Frequently Asked Questions
Ra is an arithmetic average of absolute deviations from the mean line. It cannot differentiate between sharp, abrasive peaks and smooth plateaus with deep, oil-retaining valleys. A honed surface with plateau-plateaus and deep valleys may share the exact same Ra as a severely turned, jagged profile—yet the honed surface will provide superior tribological wear resistance and sealing integrity.
A skidded pickup rests a curved metal skid directly on the workpiece adjacent to the stylus to provide a mechanical datum. It is highly portable but mechanically filters out long-wavelength waviness. A skidless pickup mounts the stylus independently against an internal precision reference datum inside the drive unit, allowing the system to measure total profile (roughness, waviness, and form error) simultaneously.
Under modern ISO 21920 rules, unless an engineering drawing explicitly specifies a maximum limit (indicated by a ‘max’ index, where zero values may exceed), a surface is considered acceptable if no more than 16% of the measured values across multiple sampling points exceed the specified upper tolerance limit.
No. Daily checks on a reference patch confirm basic instrument operational readiness. They do not evaluate stylus tip geometry degradation, linear transducer non-linearity, digital filter frequency response, or expanded measurement uncertainty required by ISO/IEC 17025.
