Microscopy and Image Measurement
Select a microscope based on your specific inspection task, optical resolution, illumination mode, working distance, and specimen geometry—not arbitrary magnification numbers. Then, implement a controlled cleanliness and diagnostic workflow to safeguard optical performance and measurement repeatability.
Key Principle: Resolution Trumps Empty Magnification
Never select an inspection microscope based solely on peak magnification figures. Always define what feature you must resolve or quantify first. Once the inspection criteria are clear, configure the numerical aperture, illumination technique, working distance, stage travel, camera sensor, and calibration scale accordingly. Improper optical cleaning causes irreversible coating damage—diagnose before you wipe.
Contents
- Where to Start: The Inspection Goal
- Magnification vs. Optical Resolution
- Selecting the Appropriate Microscope Architecture
- Quick Application Selection Matrix
- Using Microscopes for Dimensional Measurement
- Optics Cleanliness: A Controlled 7-Step Workflow
- Diagnosing Contamination Before Cleaning
- Troubleshooting Common Image Defects
- Critical Optical Cleaning Pitfalls to Avoid
- Pre-Inspection Verification Checklist
- Technical References
Where to Start: The Inspection Goal
A microscope is not an isolated magnifying glass—it is an integrated metrological inspection system. The fundamental question is never "How high can this zoom?" but rather "What specific diagnostic information must this measurement yield?"
Before sourcing an instrument or setting up a test, evaluate these boundary conditions:
- Specimen Material & Structure: Is the sample metallic, polymeric, biological, or semiconductor?
- Feature Location: Are critical details on the exterior surface, in a deep recess, or subsurface?
- Optical Reflectivity: Is the target mirror-polished, specular, diffuse, transparent, or translucent?
- Minimum Feature Size: What is the smallest edge, void, or inclusion you must resolve?
- Qualitative vs. Quantitative: Is this visual pass/fail sorting, or does it require certified dimensional metrology?
- Traceability & Records: Does the application require calibrated scale bars, raw TIFF archiving, or automated reporting?
- Kinematics & Clearance: Does the specimen require manipulation, tilt, or live probing under the lens?
- Ambient Environment: Will the instrument sit in an ISO Class 7 cleanroom, a metallurgical lab, or near machining shop-floor vibration?
Magnification vs. Optical Resolution
Magnification simply enlarges the apparent visual angle of an object. Resolution defines the physical limit at which two adjacent structural points can be distinguished as separate entities. Multiplying digital or eyepiece zoom without sufficient objective resolving power produces "empty magnification"—a larger, blurrier image with zero added information.
The resolving power of an optical system is governed by its Numerical Aperture (NA) ($r = 0.61 \cdot \lambda / \text{NA}$). A higher NA resolves finer details, but introduces fundamental physical trade-offs:
- Shorter working distance (less clearance for tall or fixtured parts)
- Shallower depth of field (requiring precise Z-focus or focus stacking)
- Greater sensitivity to optical aberrations and cover-slip / surface tilt
| Specification | What It Quantifies | Why It Matters in Metrology |
|---|---|---|
| Magnification | Ratio of image size to actual specimen size. | Useful only when backed by sufficient optical resolving power. |
| Numerical Aperture (NA) | Light-gathering capacity and angular acceptance cone. | Directly sets physical resolving limit; higher NA enables finer pitch inspection. |
| Working Distance (WD) | Physical clearance from front lens element to in-focus specimen. | Prevents stylus/part collisions; critical for bulky mechanical parts and tooling. |
| Field of View (FOV) | Actual diameter/area of specimen visible at once. | Determines inspection throughput, context awareness, and image stitching needs. |
| Illumination Mode | Light path geometry (coaxial, darkfield, oblique, polarized). | Dictates optical contrast, grain boundary visibility, and glare suppression. |
Selecting the Appropriate Microscope Architecture

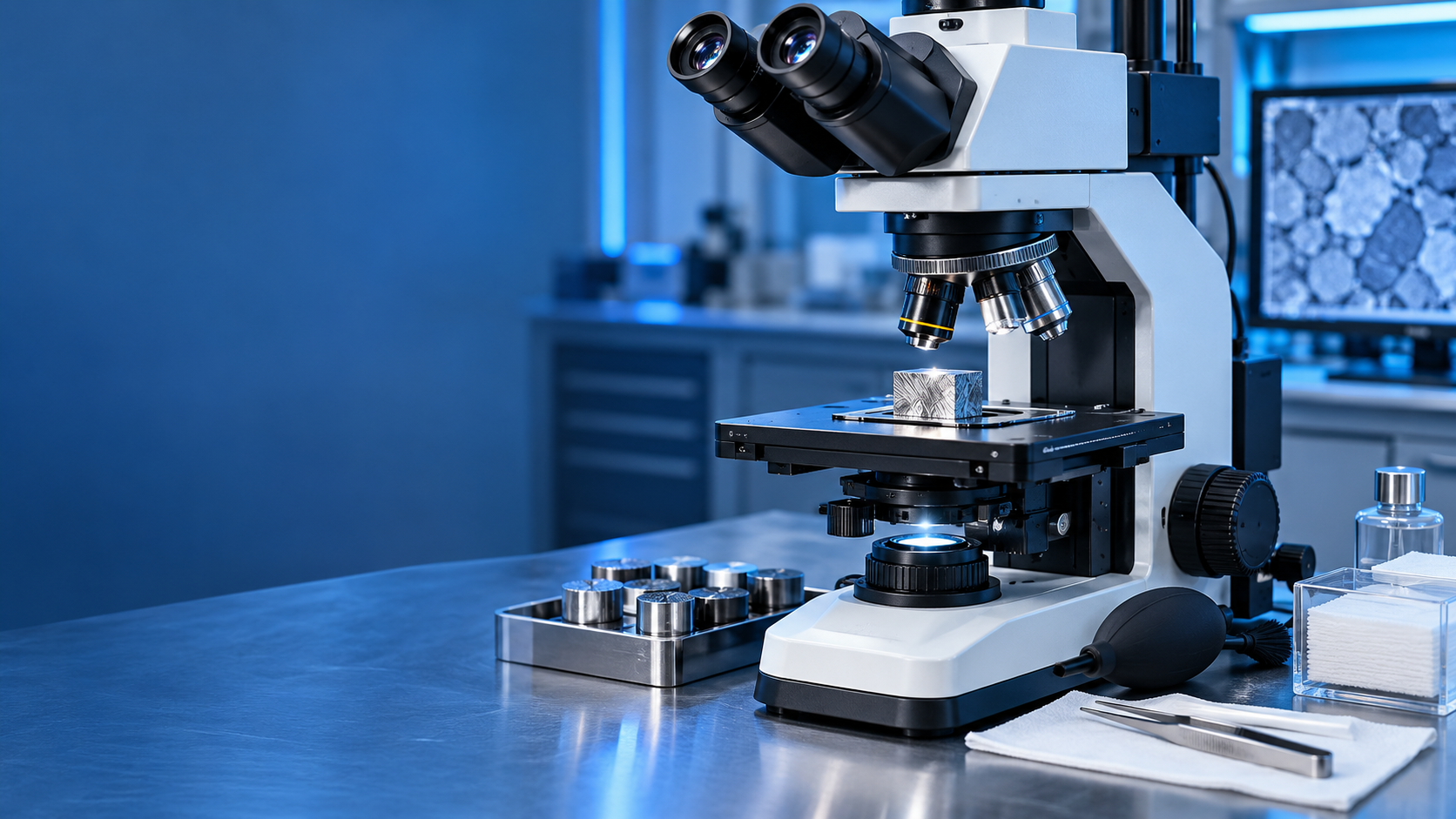

1. Metallurgical (Reflected-Light / Epi-Illumination) Microscopes:
Engineered for opaque, solid specimens where light cannot transmit through the body. Essential for polished metallographic mounts, weld cross-sections, thermal-barrier coatings, semiconductor wafers, and failure analysis.
- Key Selection Criteria: Coaxial brightfield/darkfield illumination, DIC (Differential Interference Contrast) for height relief, heavy-duty mechanical stage with fine micrometer drive, and infinity-corrected long-working-distance (LWD) objectives.
2. Stereo Microscopes (Greenough & Common Main Objective):
Designed for low-to-medium magnification (typically 5× to 80×), wide fields of view, large working distances, and true stereoscopic depth perception.
- Key Selection Criteria: Soldering inspection, mechanical deburring checks, macro-fractography, precision assembly, and non-destructive surface flaw sorting.
3. High-Resolution Digital Measuring Microscopes:
Integrate high-speed CMOS sensors, motorized Z-axis columns, multi-angle motorized lighting, and certified image analysis software.
- Key Selection Criteria: Fast report generation, automated edge-detection metrology, focus stacking (extended depth of field), and 3D surface profile rendering. Ensure optical glass quality matches sensor pixel pitch—never evaluate digital scopes solely by camera megapixel ratings.
Quick Application Selection Matrix
| Inspection Task | Critical Optical Features | Common Specification Mistake |
|---|---|---|
| Metallographic Microstructures | Epi-brightfield/darkfield, high-NA plan achromats, polarized light. | Prioritizing extreme magnification over numerical aperture and contrast mode. |
| Large Machined Assemblies | Long working distance (LWD), boom/articulated stand, large stage travel. | Purchasing a standard stand with insufficient throat depth and clearance. |
| Defect Auditing & Reporting | Even diffuse illumination, calibrated digital scale reticle, stable stand. | Treating high camera sensor megapixels as equivalent to optical resolution. |
| Dimensional Metrology | Telecentric optics, sub-pixel edge detection, glass stage micrometer check. | Measuring features across zoom steps without recalibrating optical scale. |
| Shop-Floor Production Sorting | Ergonomic eyepiece viewing angle, durable mechanical locks, simple controls. | Deploying an over-complicated research system prone to setup drift. |
Using Microscopes for Dimensional Metrology
Visual clarity does not equal measurement accuracy. A sharp digital image can still yield false dimensional data if optical distortion, cosine error, or scale drift are present. Before recording dimensional data, verify:
- Traceable Stage Calibration: Calibrate pixel scaling using an accredited, NABL- or NIST-traceable glass stage micrometer at the exact objective magnification and camera resolution used for the test.
- Magnification Parfocality & Detents: On zoom microscopes, rely only on calibrated mechanical detent stops. Free-floating zoom positions introduce scale uncertainty.
- Parallax & Optical Distortion: Conventional lenses exhibit perspective distortion across the field periphery. Use telecentric lenses for high-precision dimensional metrology to maintain constant magnification regardless of specimen distance.
- Specimen Leveling: Surface tilt introduces severe cosine measurement errors. Mount polished metallographic samples in mechanical leveling presses.
Optics Cleanliness: A Controlled 7-Step Workflow
Contaminated optical glass scatters illumination, reduces contrast, and obscures fine features. However, aggressive or improper cleaning permanently scratches anti-reflective coatings. Follow this standardized maintenance progression:
- Isolate and Prep the Environment: Ensure the inspection station is free from airborne drafts, grinding swarf, and oil mist. Clean the bench surface before handling optics.
- Inspect Under Oblique Light: Examine the front lens element using an external penlight at an angle to reveal dust particles, dried immersion oil, or fingerprint residues.
- Isolate Contamination Source: Mechanically isolate which optical plane holds the artifact (sample, objective, eyepiece, or sensor window) before applying solvent.
- Non-Contact Dust Removal: Use an oil-free rubber bulb blower or clean optical-grade compressed air. Never drag a dry cloth over dusty lenses—abrasive mineral dust will scratch the coatings.
- Gentle Solvent Cleaning: If residue remains, use optical lens tissue moistened with manufacturer-approved solvent (e.g., optical-grade isopropanol/petroleum ether mix). Wipe in a light, spiral motion from center to edge.
- Inspect Specimen & Stage: Ensure the stage glass and specimen mount are degreased. Debris on the sample surface degrades image quality regardless of lens cleanliness.
- Verify Optical Baseline: Re-examine a certified reference specimen to confirm contrast and resolution have returned to specification.
Diagnosing Contamination Before Cleaning
Determine exactly which component is contaminated before taking optics apart:
| Observed Phenomenon | Likely Contamination Source | Corrective Action |
|---|---|---|
| Spot moves when the stage is translated | Specimen surface, slide, or cover-glass. | Clean or re-prepare the specimen; check mounting resin. |
| Spot rotates when the eyepiece is turned | Eyepiece (ocular) lens surface or reticle. | Inspect and clean the outer/inner ocular elements. |
| Spot disappears when switching objectives | Front element of that specific objective. | Clean the front lens of that specific objective carefully. |
| Spot remains fixed on monitor across objectives | Camera C-mount adapter or CMOS sensor IR cut filter. | Blow dust off sensor window using approved cleanroom blower. |
Troubleshooting Common Image Defects
| Image Issue | Primary Checkpoint | Metrological Root Cause |
|---|---|---|
| Blurry Image / Inability to Focus | Specimen flatness, objective collar, working distance limit. | Cover-slip thickness mismatch; stage mechanical Z-stop misadjusted. |
| Milky Low Contrast / Glare | Aperture diaphragm setting, oil/film residue on lens. | Aperture diaphragm opened too wide; dried fingerprint grease causing flare. |
| Uneven Brightness Across Field | Light source alignment, condenser centering (Köhler setup). | Condenser misaligned; nosepiece objective not seated in mechanical detent. |
| Apparent Blur During Acquisition | Optical table vibration, long exposure time. | Structural floor vibrations from nearby presses or HVAC machinery. |
Critical Optical Cleaning Pitfalls to Avoid
- Never use generic paper towels, facial tissues, or clothing: Wood fibers contain abrasive silicates that cause micro-scratching on optical anti-reflective coatings.
- Never spray solvent directly onto optical housings: Liquid enters objective cement boundaries via capillary action, dissolving internal cemented lens doublets.
- Avoid unauthorized aggressive solvents: Acetone dissolves plastic barrel rings and sealant cements. Use only manufacturer-recommended pure optical solvents.
- Do not disassemble sealed objectives: Factory lens alignments are configured to sub-micron centration tolerances. Opening barrels ruins optical correction.
- Do not apply excessive mechanical pressure: Lens coatings are nanometer-thin layers; apply only featherlight contact via folded optical lens tissue.
Pre-Inspection Verification Checklist
- ☑ Inspection Scope Defined: Acceptance tolerance and measurement objectives documented.
- ☑ Specimen Preparation: Surface degreased, leveled, and free of loose particulate.
- ☑ Optics & Illumination Verified: Objective NA and lighting mode configured for the sample.
- ☑ Clearance Verified: Working distance and stage travel sufficient to prevent mechanical collision.
- ☑ Optics Inspection Completed: External lens elements checked and cleared of debris.
- ☑ Scale & Calibration Confirmed: Software pixel calibration verified against a certified stage micrometer.
- ☑ Vibration Isolation Active: Stable anti-vibration table engaged; no nearby machine interference.
- ☑ Traceability Logged: Instrument asset ID, objective serial numbers, and calibration status recorded.
Technical Standards & Industry References
- ISO 10934: Optics and optical instruments — Microscopy — Terms and vocabulary
- ASTM E883: Standard Guide for Reflected-Light Photomicrography
- ZEISS Microscopy Guides: Principles of Numerical Aperture, Optical Resolution, and Cleaning Procedures
- ISO/IEC 17025 / NABL Metrology Guidelines: Traceability requirements for optical scales and stage micrometers
